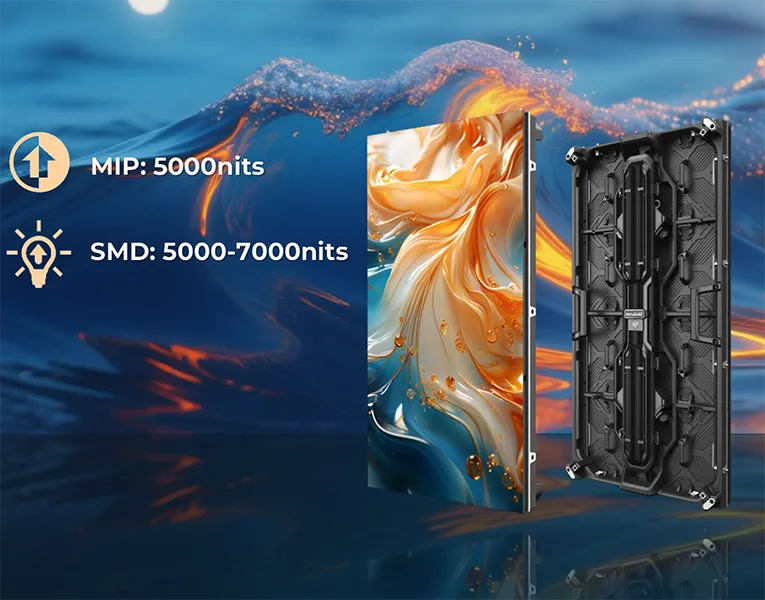

MIP: 5000nits SMD: 5000-7000nits 5000~7000nits brightness 20% increase in brightness ensures clear visibility even under direct sunlight in outdoor environments. 160°+ wide viewing angle Pixel-level mixing guarantees uniformity, with 160°+ wide viewing angles and consistent color reproduction without dead spots. 7680Hz refresh rate Smooth and dynamic display performance. Perfect for mobile device capture, enhancing the effectiveness of online advertising campaigns.
Small size ，deep black levels Deep black levels are vital for revealing fine details. MIP LEDs can achieve smaller size, with a larger black area and clearer details. Stability of fully flip chip MIP Flip-chip LEDs are directly soldered, offering stronger connections, better heat dissipation, and enhanced stability. Luminous Efficiency Improvement MIP flip-chip LEDs emit light from five sides without blockage, boosting efficiency by over 50%.

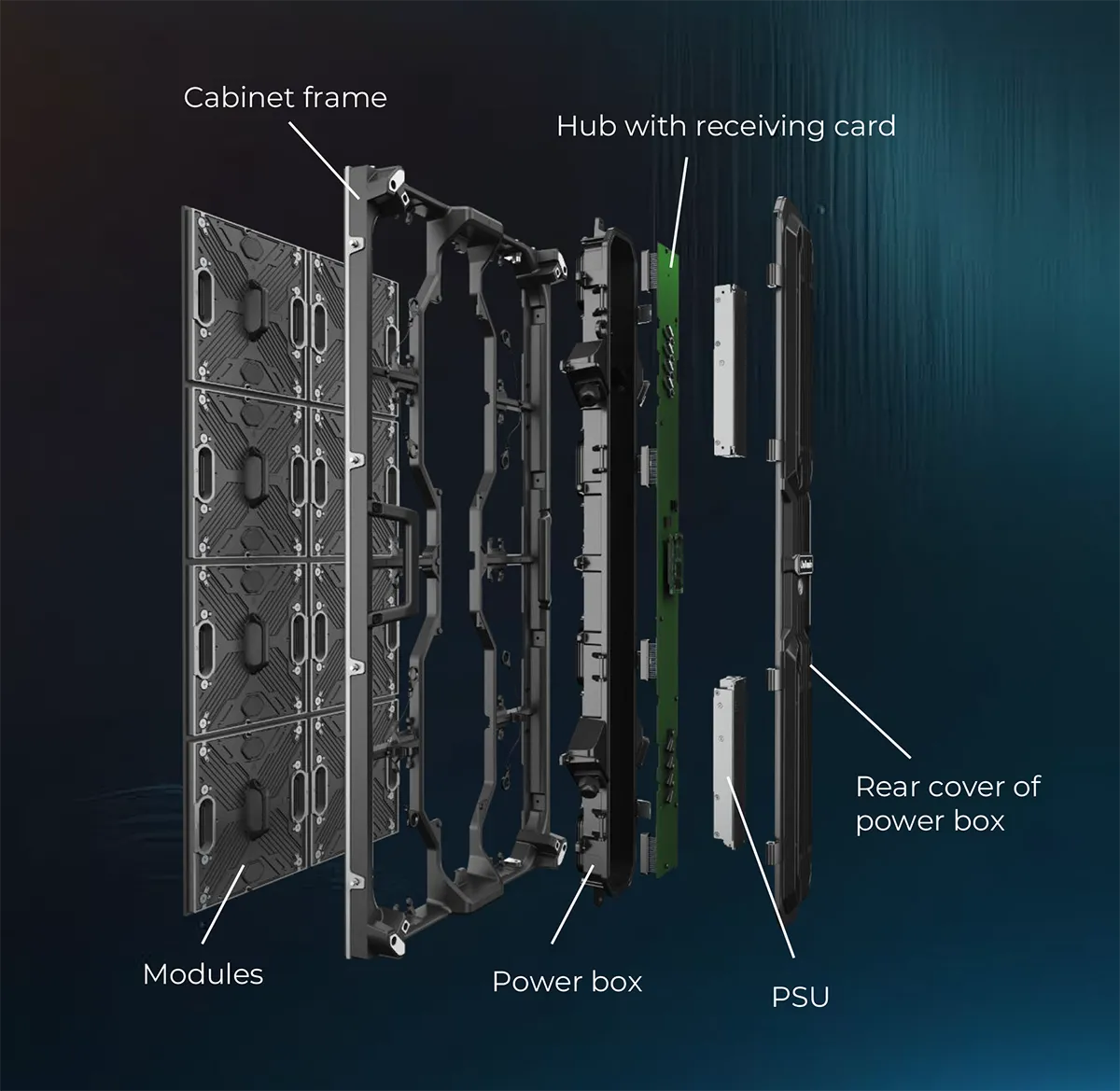

UslimⅢ O's module cordless connection facilitates easy maintenance while ensuring stable signal transmission by reducing significant amount of connection cables. This design minimizes cable clutter, allowing for quick access to components and enhancing overall reliability, making it an efficient choice for seamless operation.

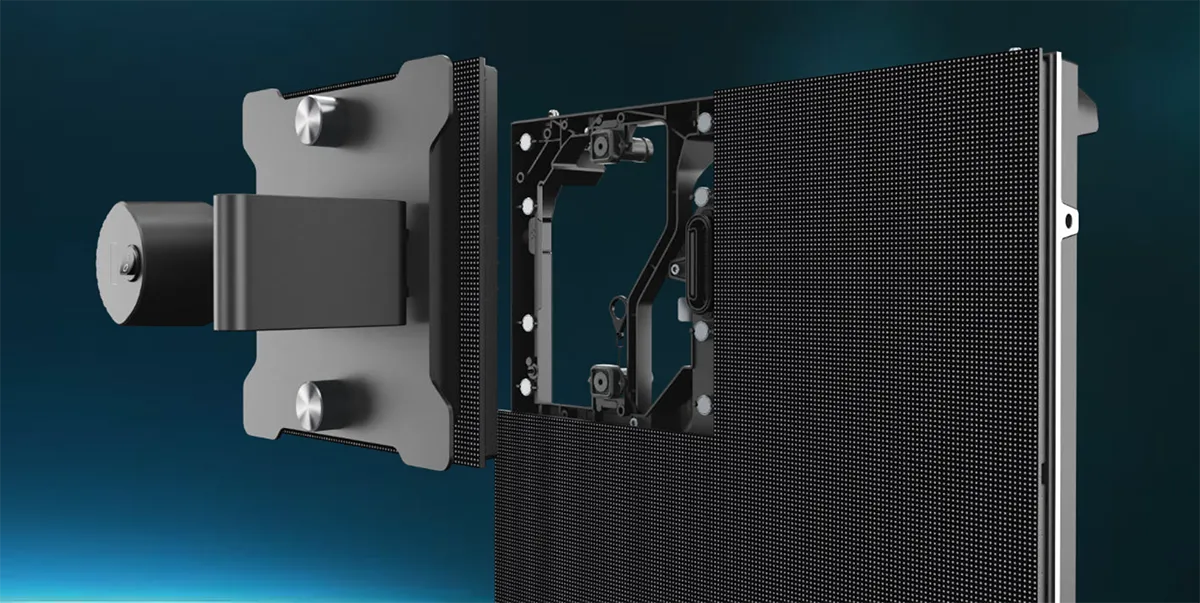

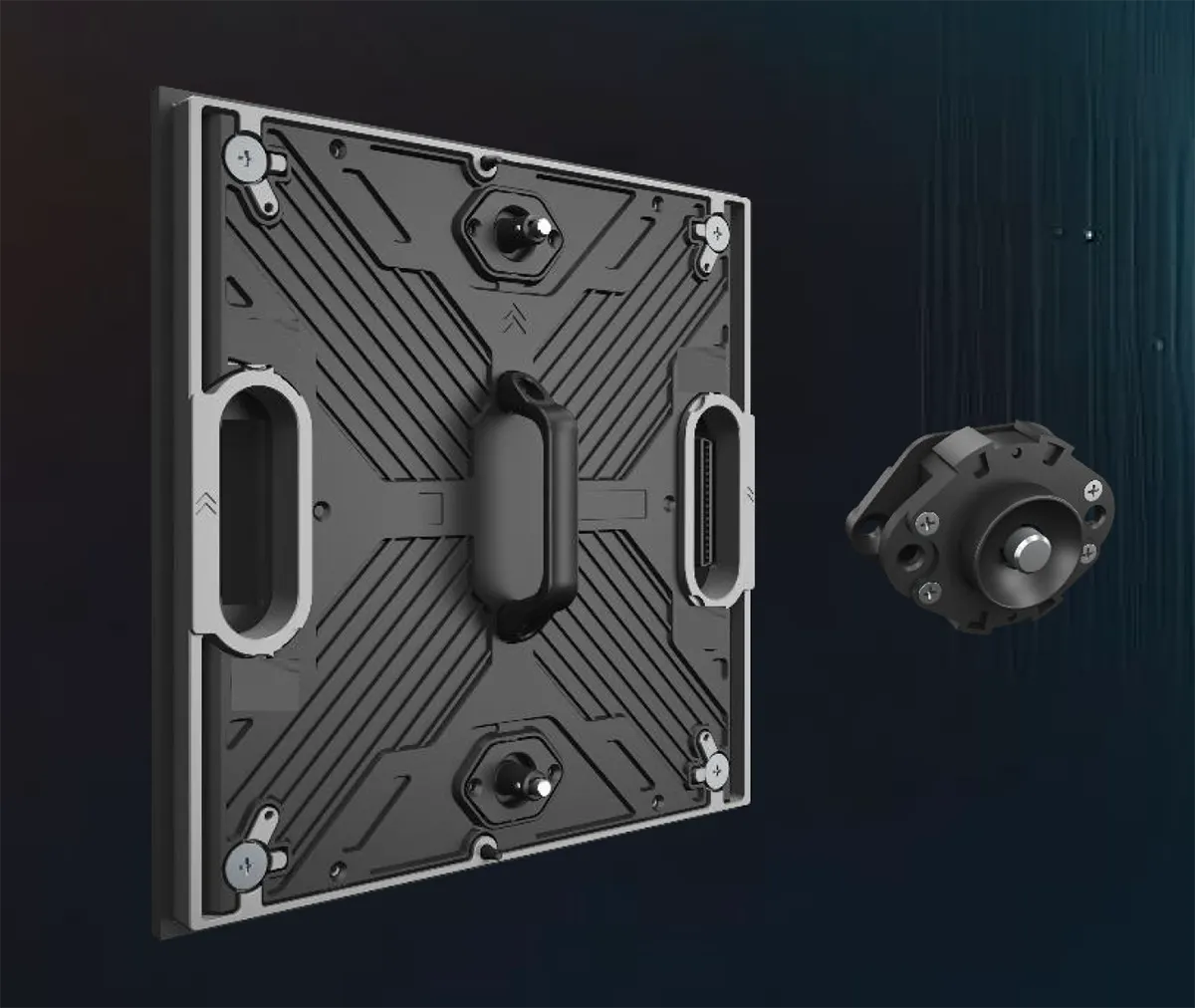

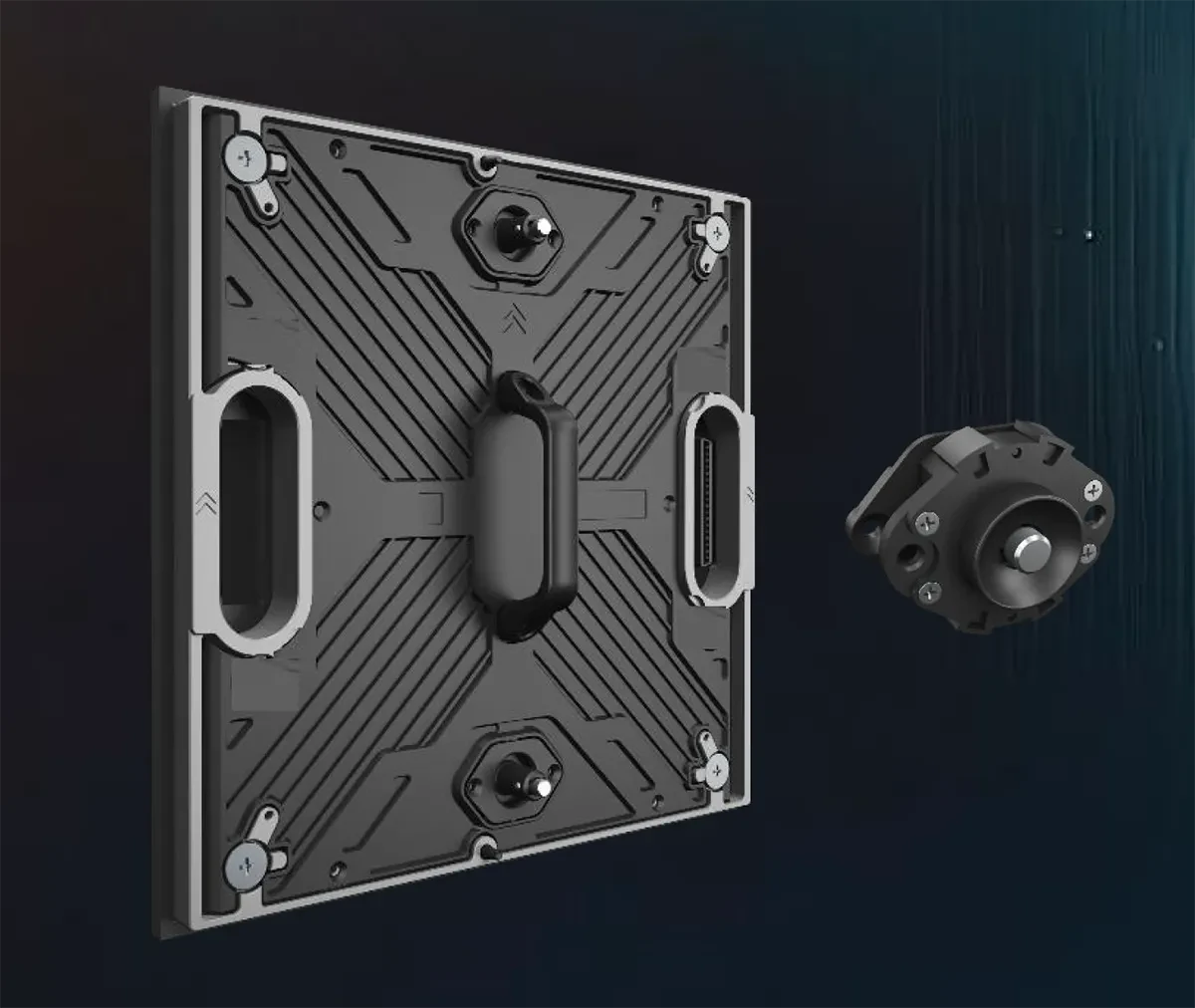

Patent Locks The powerful magnet + magnetic anti-loosening structure eliminate the risk of module detachment caused by magnetic attraction alone. This dual insurance design ensures safety. Additionally, the use of specialized maintenance tools for disassembly prevents unauthorized module removal or theft by non-professional personnel.
Prevents detachment Prevents theft Prevents disassembly
| Model | UslimⅢ MIP O1.5 | UslimⅢ MIP O1.9 | UslimⅢ MIP O2.5 | UslimⅢ O2.6 | UslimⅢ O2.9 | UslimⅢ O3.9 |
| Pixel Pitch | 1.56 | 1.9 | 2.5 | 2.6 | 2.9 | 3.9 |
| LED Type | MIP | SMD | ||||

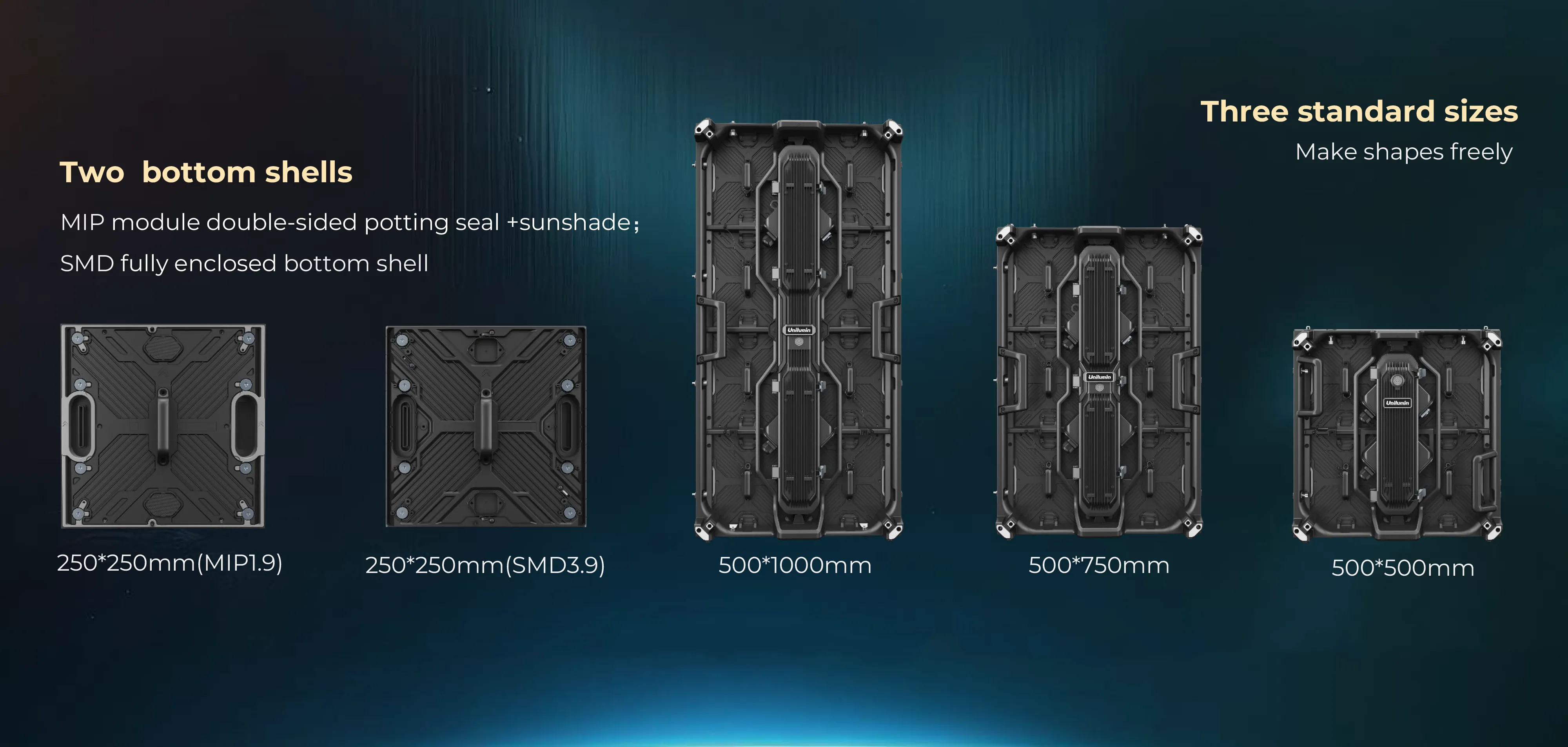

| Module Size | 250x250mm | 250x250mm | ||||
| Panel Size | 500×500/500×750/500×1,000×86mm | 500×500/500×750/500×1,000×87mm | ||||
| Weight | 41/38.5/37kg /㎡ | 35/33/31kg /㎡ | ||||

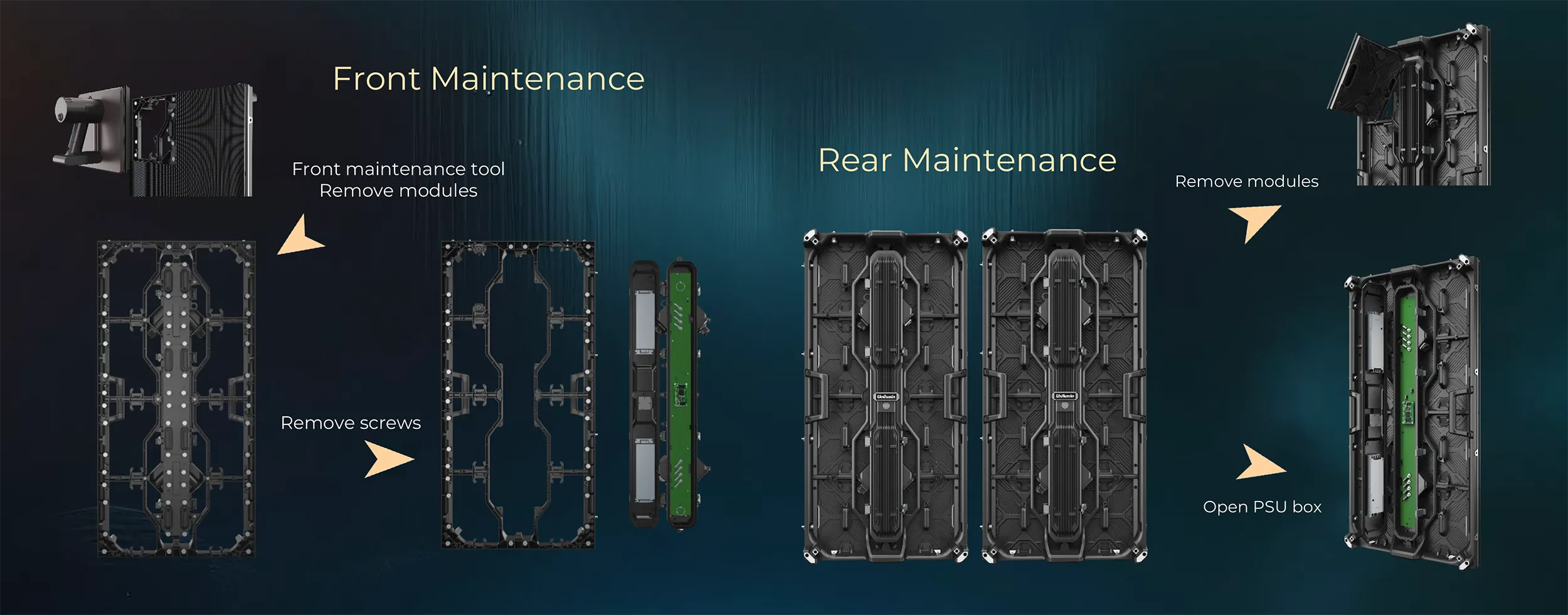

| Maintenance |
100% Front and Rear |
|||||

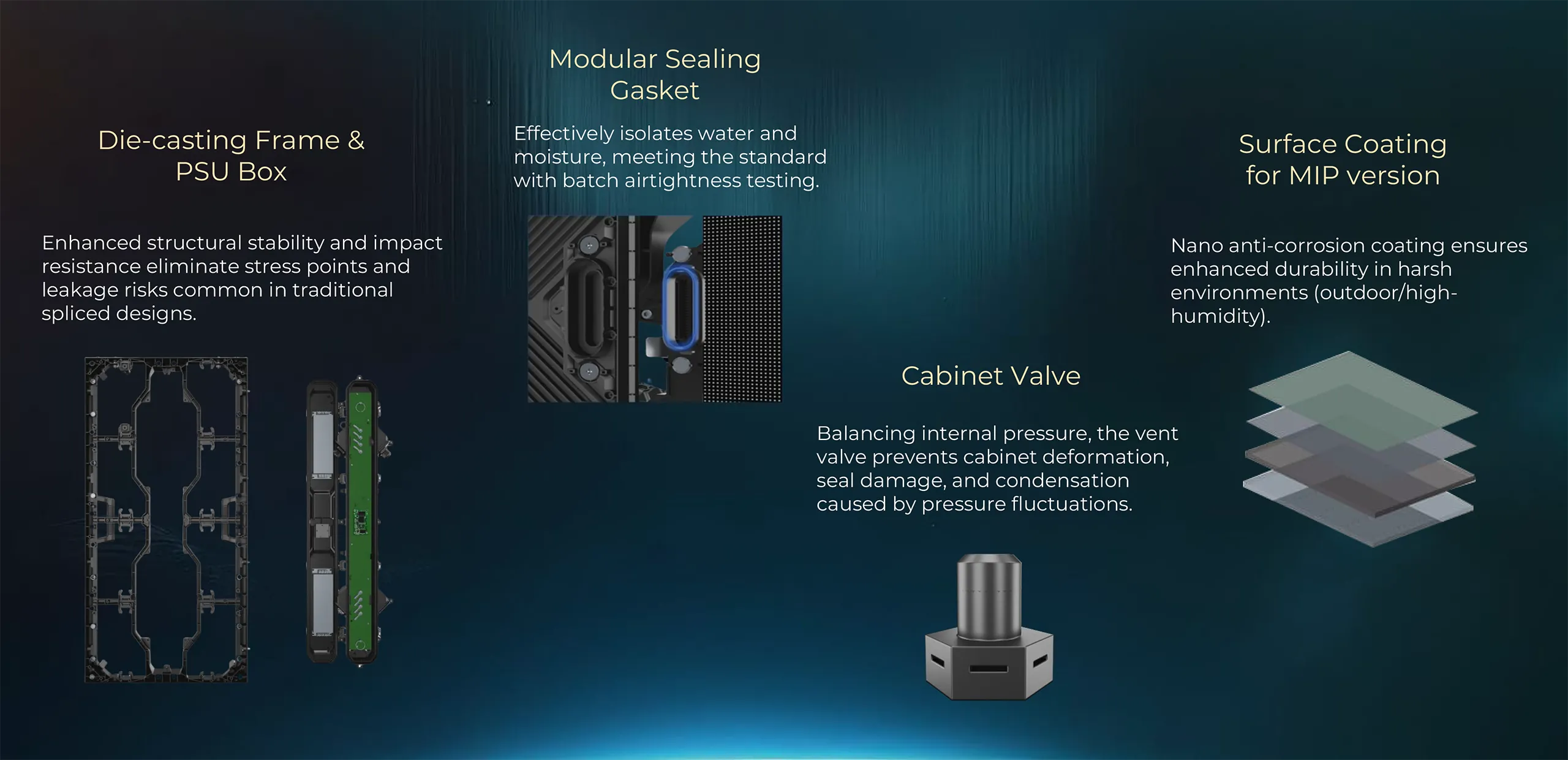

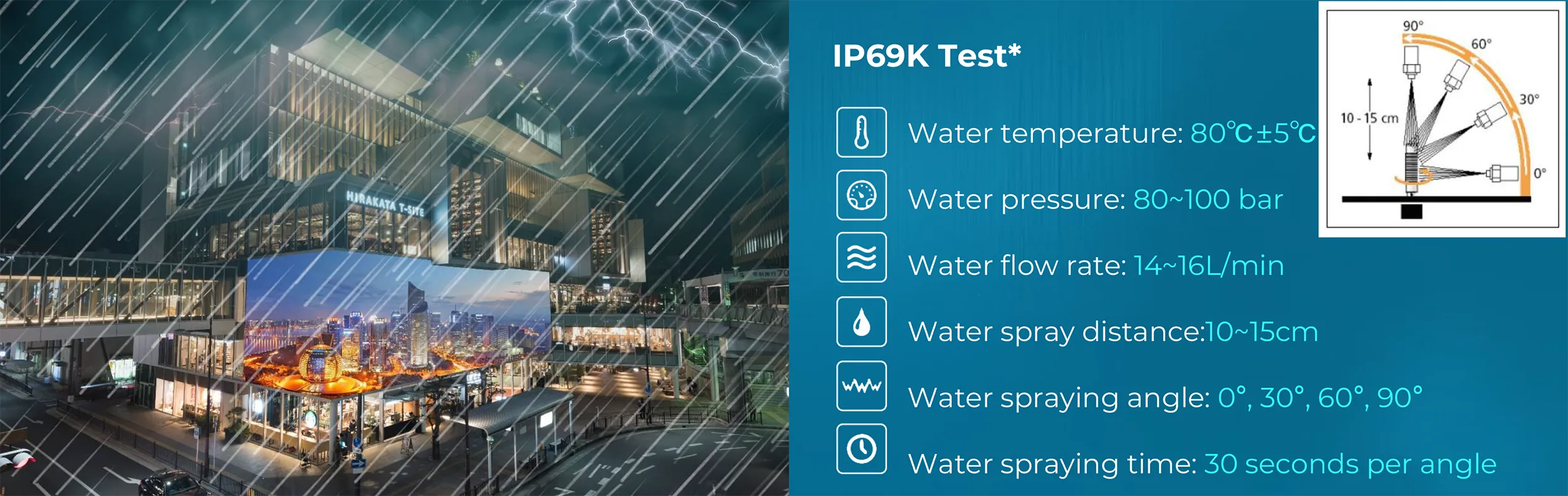

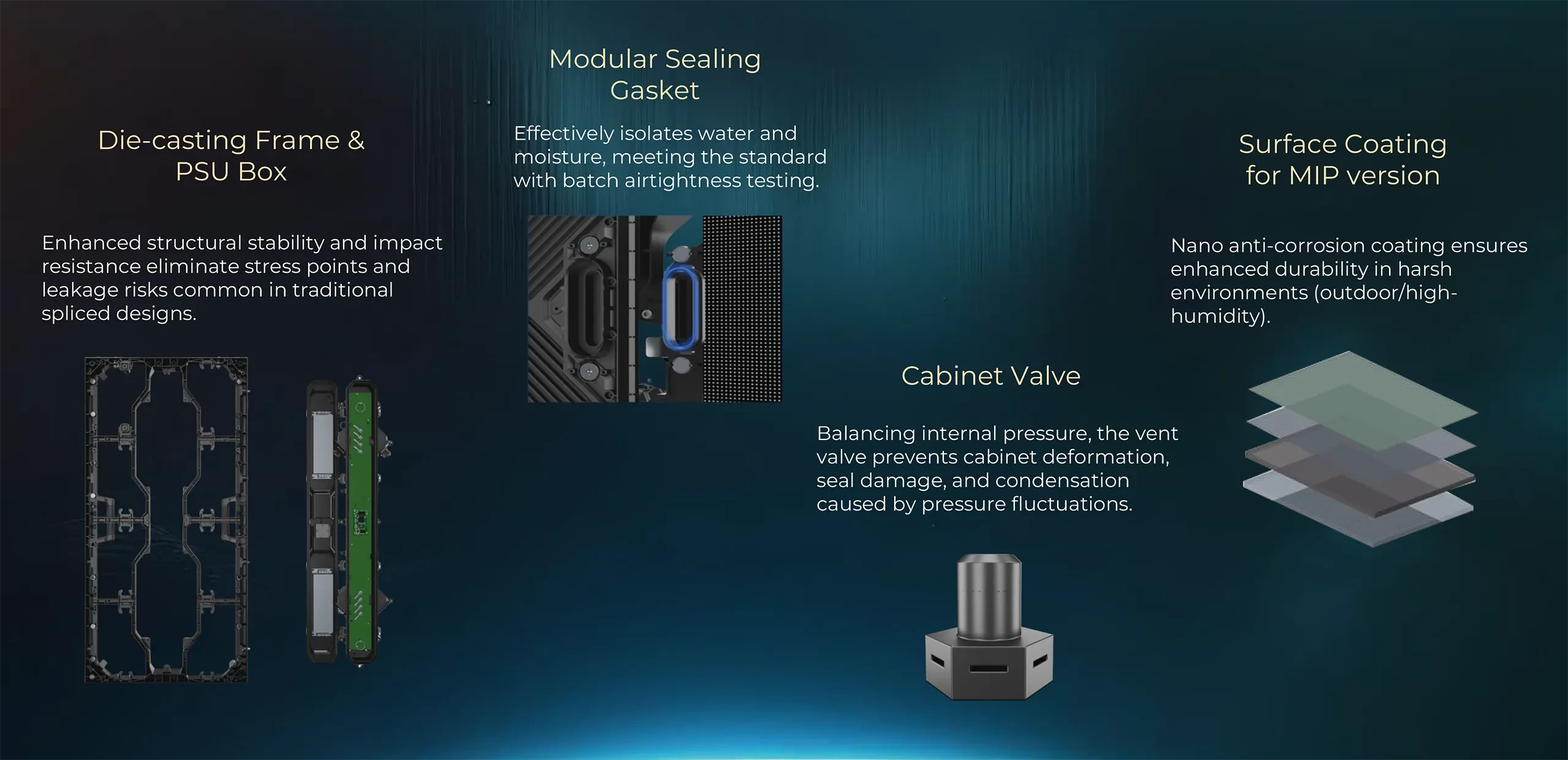

| Ingress Protection | IP69K | |||||
| Material | Die-cast Aluminum | |||||
| Brightness | 5,000cd/m² | 5,500-7,000cd/m² | ||||
| Viewing Angle
（H / V） |
170°/170° | 160°/160° | ||||
| Contrast Ratio | 7,000-10,000:1@10lux | 8,000-16,000:1@10lux | ||||
| Gray scale | ≥14bit | |||||
| Refresh Rate | 7,680Hz | |||||
| Input Power <Max> | 600W/m² | 580-640W/m² | ||||
| Input Power <Typical> | 150W/m² | 145-160W/m² | ||||
