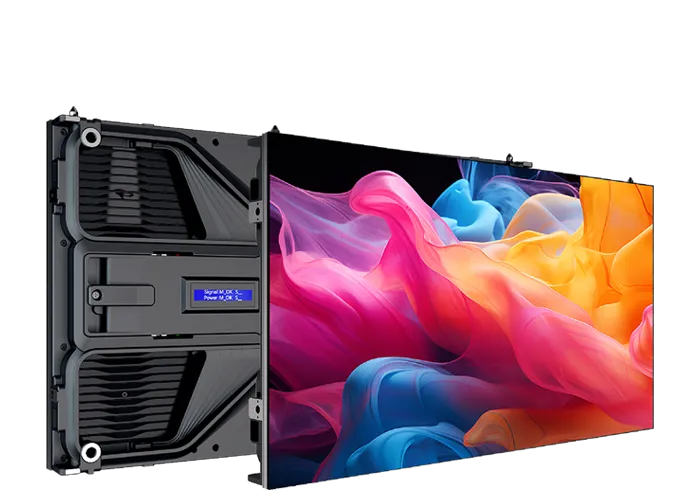

ULWⅢ Pro – Unilumin

Application Scenario

Exhibition

House of Worship

Excellent Visual Performance

EBL+（Enhance black level+）Multiple optical Processing
Adopt multilayer nano-optical material, 8000:1 high contrast ratio, presenting extremely deep black visual with no reflections.

Excellent Visual Performance

3+7 Protections

Stability & Green

Full Flip Chip With Common Cathode — Mini & Micro Chip Level Package • RGB full flip chip，no welding wires，higher Product stability, longer lifespan, failure rate reduced by 50%. • Common cathode design, five-side light emission, higher luminous efficiency, power consumption reduced by 34%（compare with regular SMD）

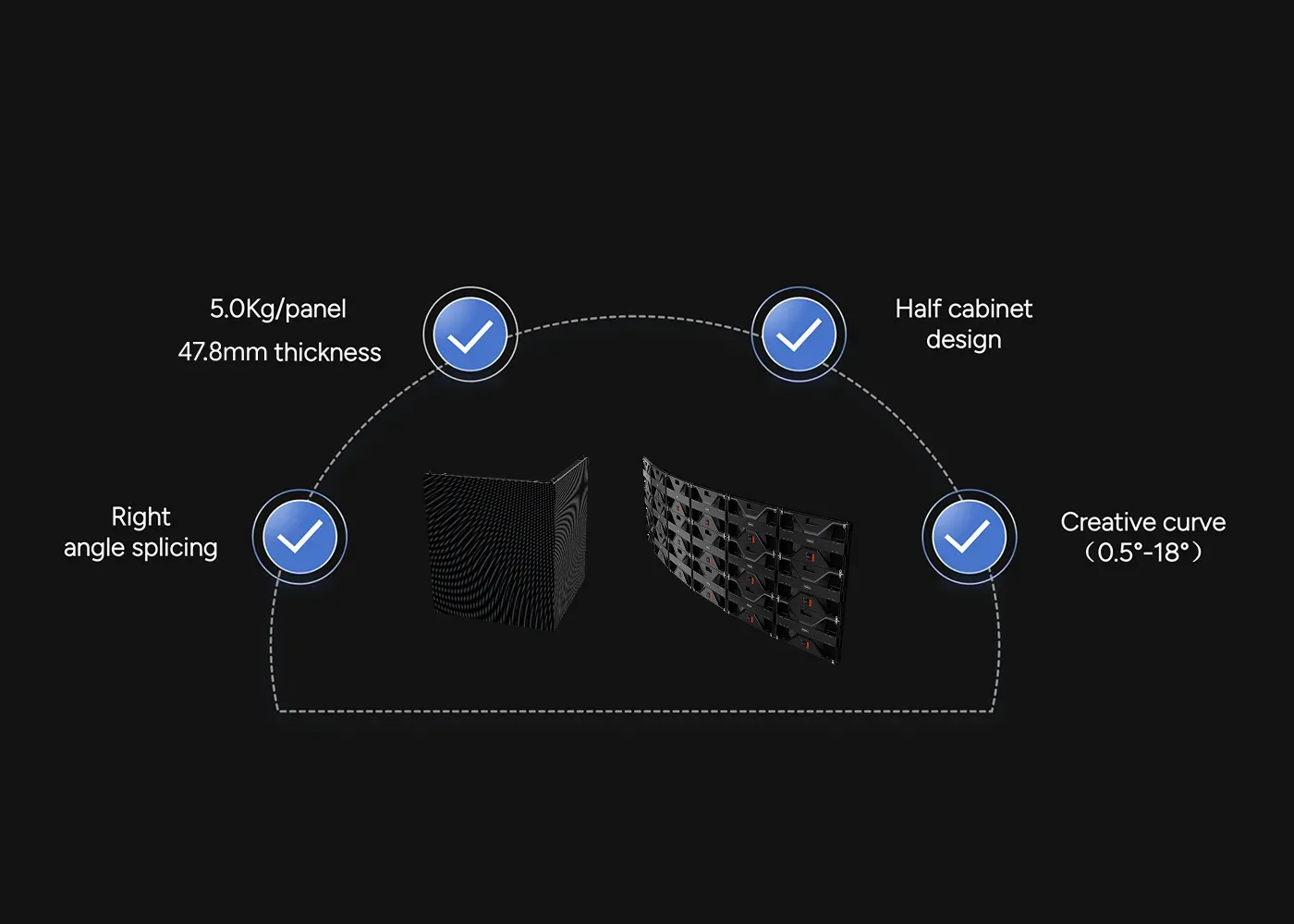

High flexibility

Flexible shape Support inner curve,right angle and half cabinet Support max 18° inner curve cabinet splicing， a complete circle can be made up with 20 cabinets

Care For Eyes

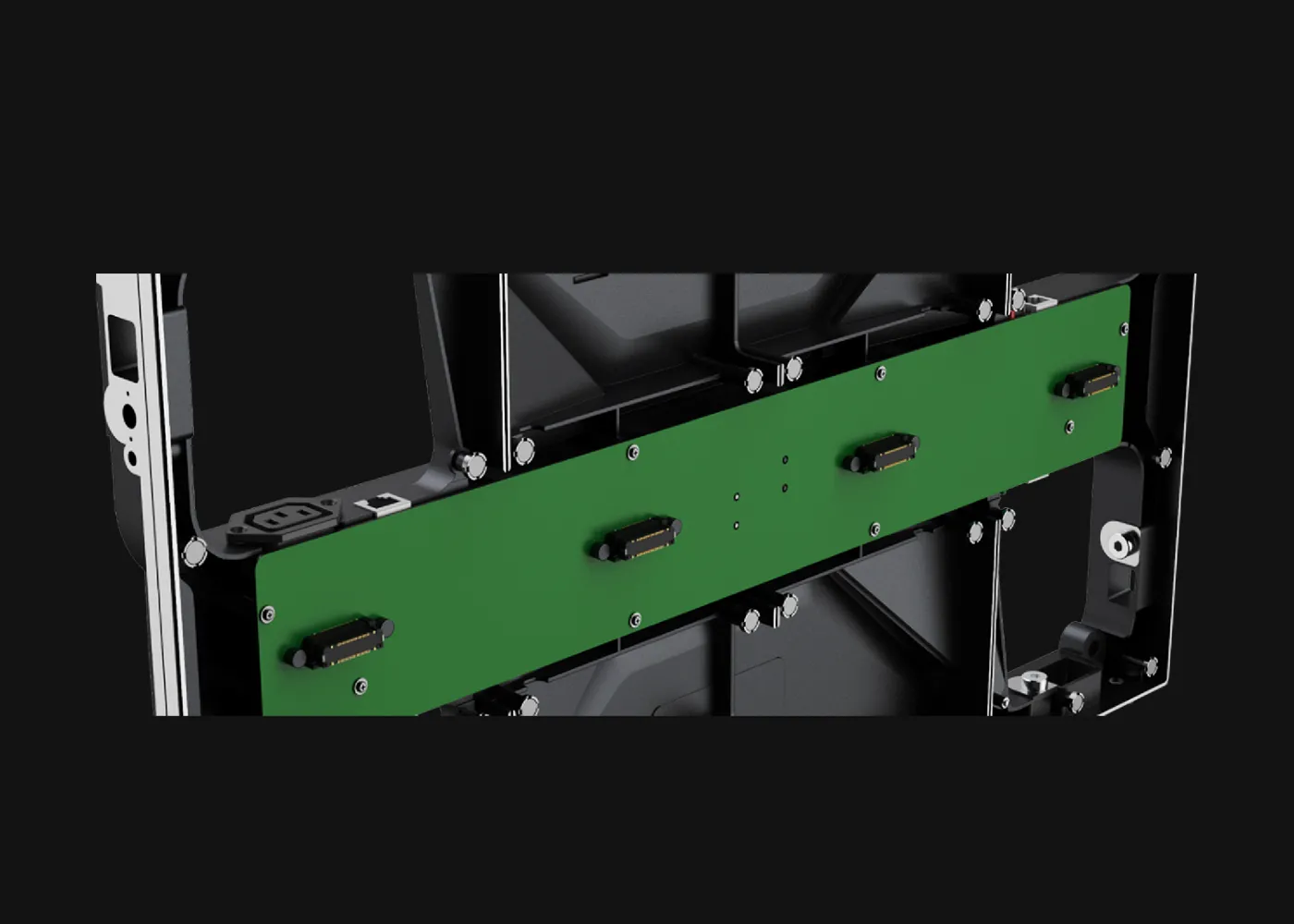

High integration，more stable

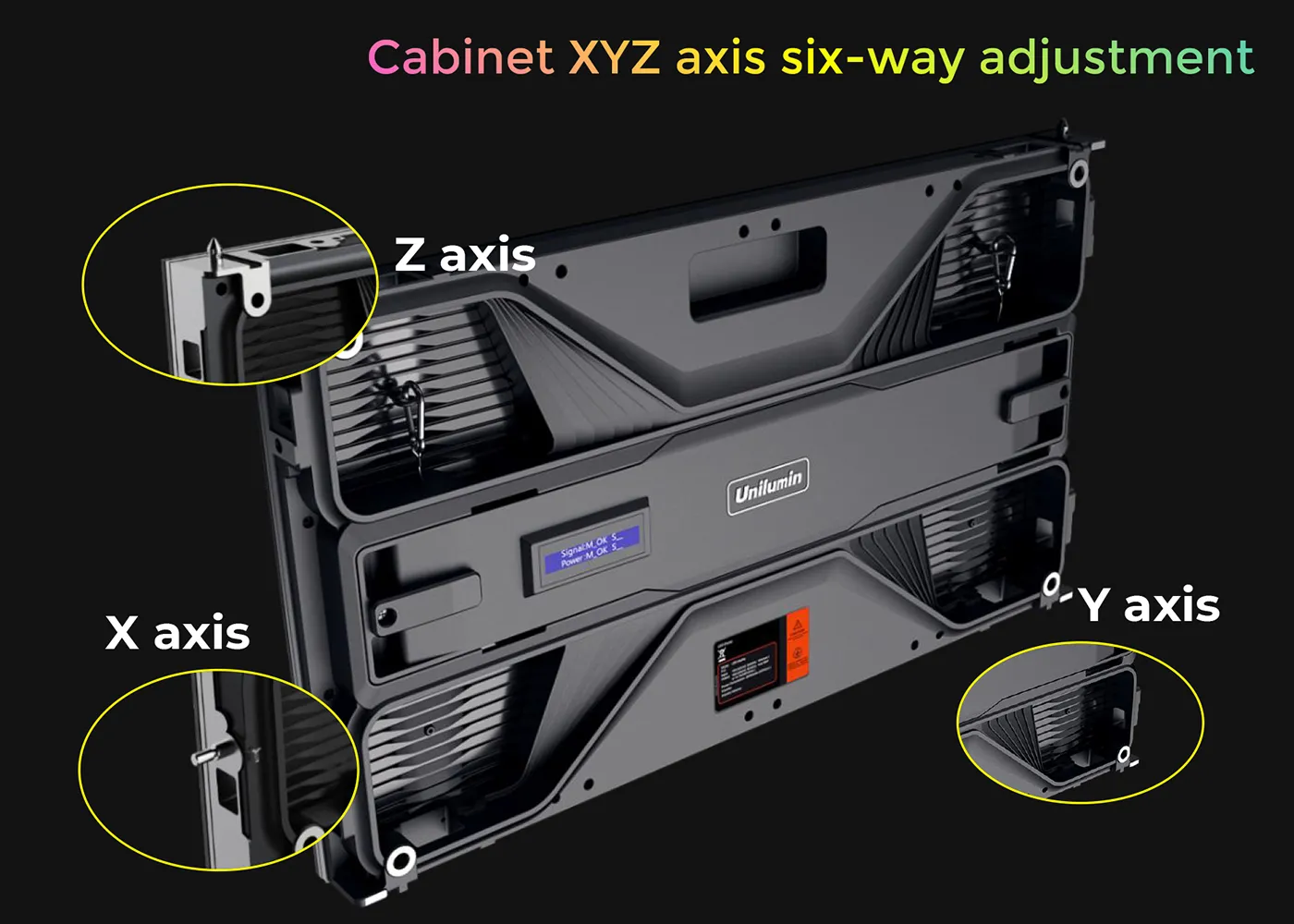

XYZ axis six-way adjustment

Product Parameter

Product	ULWⅢ Pro Series
Pixel Pitch	0.9	1.2	1.5	1.8	2.5
Panel Size	600×337.5×47.8mm
Weight	5kg/panel
Brightness	600nits

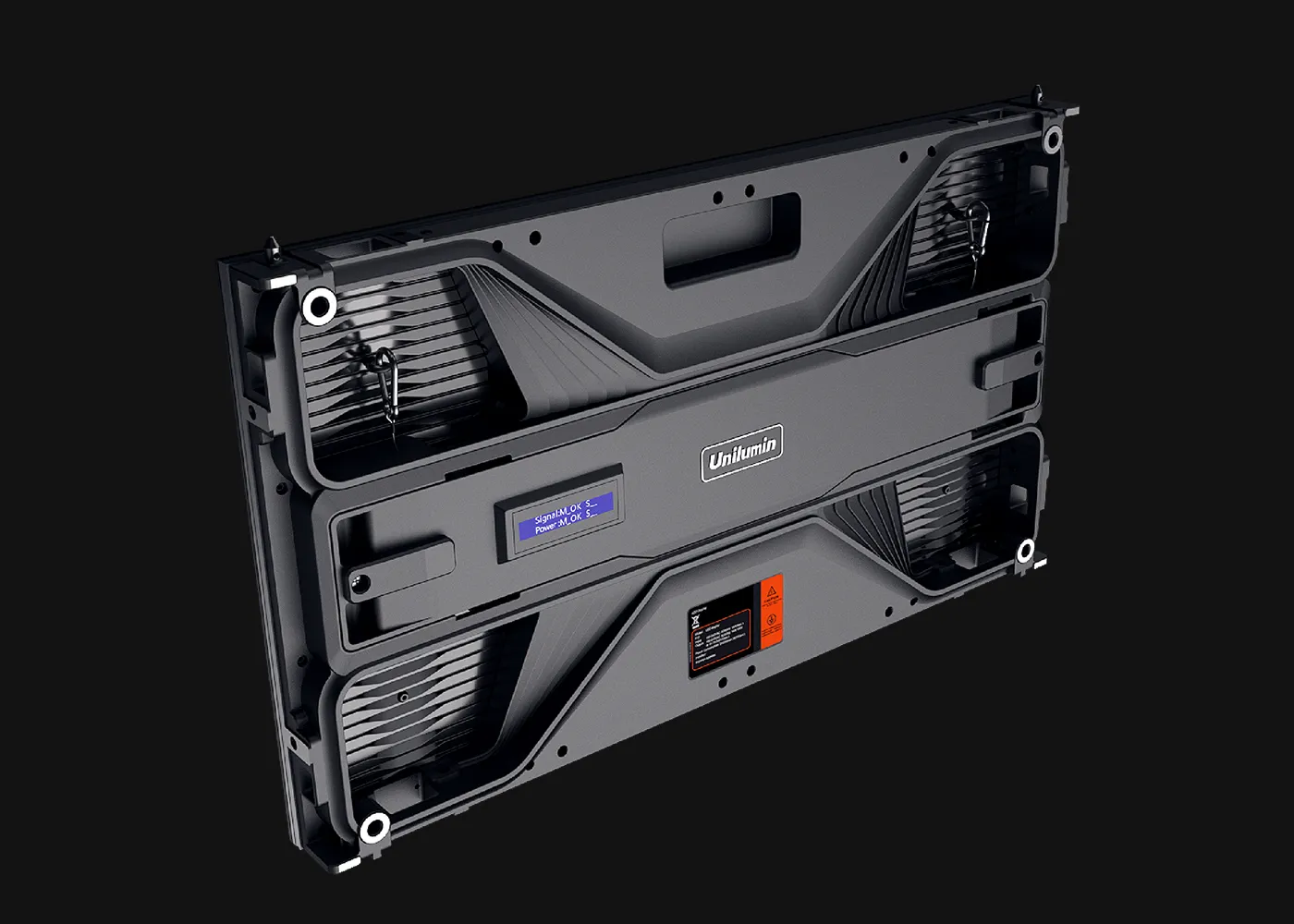

Maintenance	Front and rear maintenance
Fault monitoring	Indicator light & LCD *
Ucare	Option
Input Power<Max>	700W/m²	600W/m²	500W/m²	475W/m²	425W/m²
Input Power<Typical>	234W/m²	200W/m²	167W/m²	158W/m²	142W/m²
