Usurface PL1 – Unilumin

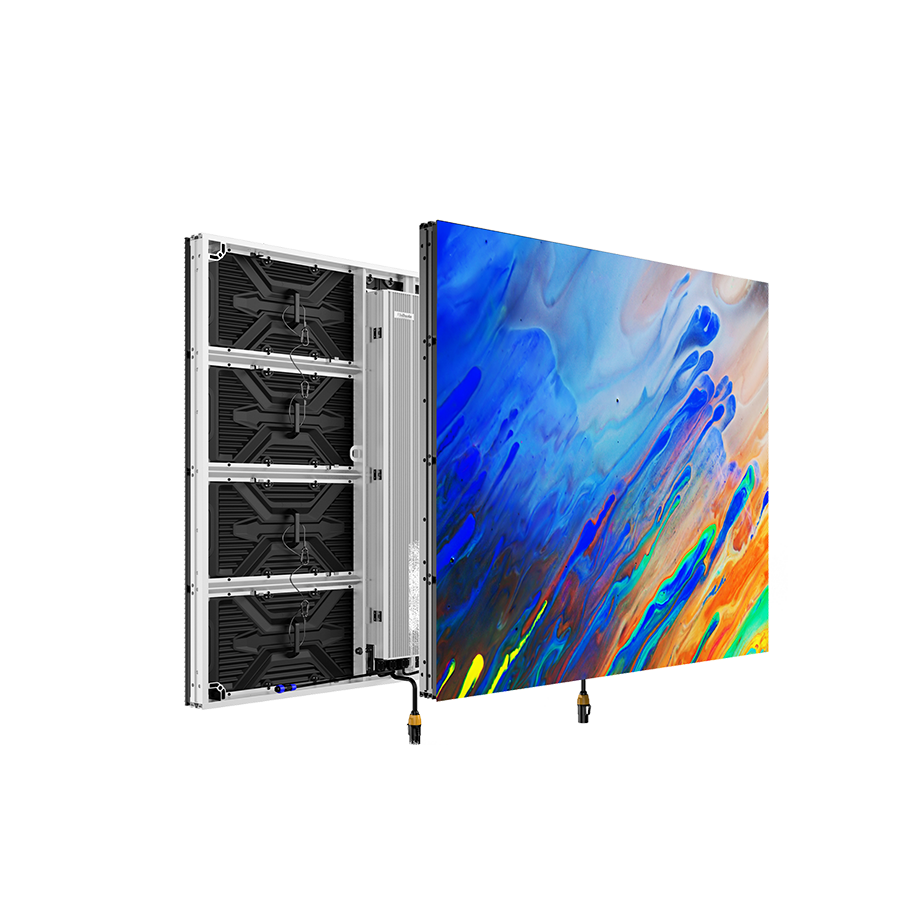

Usurface PL1

Advertising with no Boundaries
• Super light and slim
• Energy-saving common cathode design
• hassle-free maintenance and installation

LED Billboard Redefined – Covering Every Inch

Conventional displays are not perfect for most billboards because of size constraints. However,with its 1000mm x 1000mm dimensions, the Usurface PL1 can achieve seamless 100% coverage and maximizes your advertising value.

Upgrade Your Advertising Impact

Supreme Parameter
•7500-10000nits brightness•12000：1 high contrast•7680Hz refresh rate  14bit gray scale
With an impressive brightness of more than 7500nits, a dynamic 7680Hz refresh rate, and a remarkable 12000: 1 contrast ratio, Usurface PL1 delivers a superior visual experience that helps your advertising values rise to a new height and effortlessly draw in passers-by.

Ultimate Energy-Saving Performance

Usurface PL1  Max. •Consumption：650 W/㎡•Avg. Consumption：217 W/㎡
13% Energy Saving•@7500nits
Conventional Display•Max. Consumption：750 W/㎡•Avg. Consumption：250W/㎡
In high-brightness settings, hefty power usage burdens expenses. With DVPS technology, Usurface PL1 can reduce energy consumption by 13% compared to conventional displays, boosting your ROI.

Extreme Lightness for Optimal Cost Advantage

• Aluminum profile cabinet • Ultra-light : 23.5 kg/㎡ • 32% ↓ less weight than others • Save 1,725 kg ↓ of steel structure ( per 100m²）

Convenient Assemble and Disassemble Design

• 500*250mm module size • Front & rear installation available • Fixed by 8 knobs, stable and reliable

Smart Monitoring of LED Screen Status*

• Pixel Inspection Function • Module Temperature Monitoring • Module Temperature Monitoring • Module Voltage Monitoring • Automatic Calibration

Thinner, Efficient, and Cost-Effective

With 60mm thickness, Usurface PL1 revolutionizes transport efficiency, enabling 36% more cabinets at equal capacity for significant transportation cost savings with increased transport efficiency.

Hassle-free Front & Rear Maintenance

Usurface PL1 supports both front & rear maintenance, more user-friendly

IP66/IP65 High Protection

• Enclosed cabinet design with fanless power supply；
• Modules with waterproof sealing rings；
• (Top-class) Water-proof aerial  plugs；

Innovative Groove Splicing Design

Usurface PL1 features grooves on all sides to prevent light leakage during splicing, ensuring seamless displays
