Holographic Invisible Screen Udesign SV
Creating a new Era of Indoor Commercial Display
Creating a new Era of Indoor Commercial Display
| Model | Udesign SV3.9 | Udesign SV6.25 | ||||
| LED Specification | SMD 2121 | SMD 2121 | ||||
| Pixel Pitch (mm) (horizontal/vertical) | 3.9-3.9 | 6.25-6.25 | ||||
| Pixel Density (dot/m²) | 65536 | 25600 | ||||

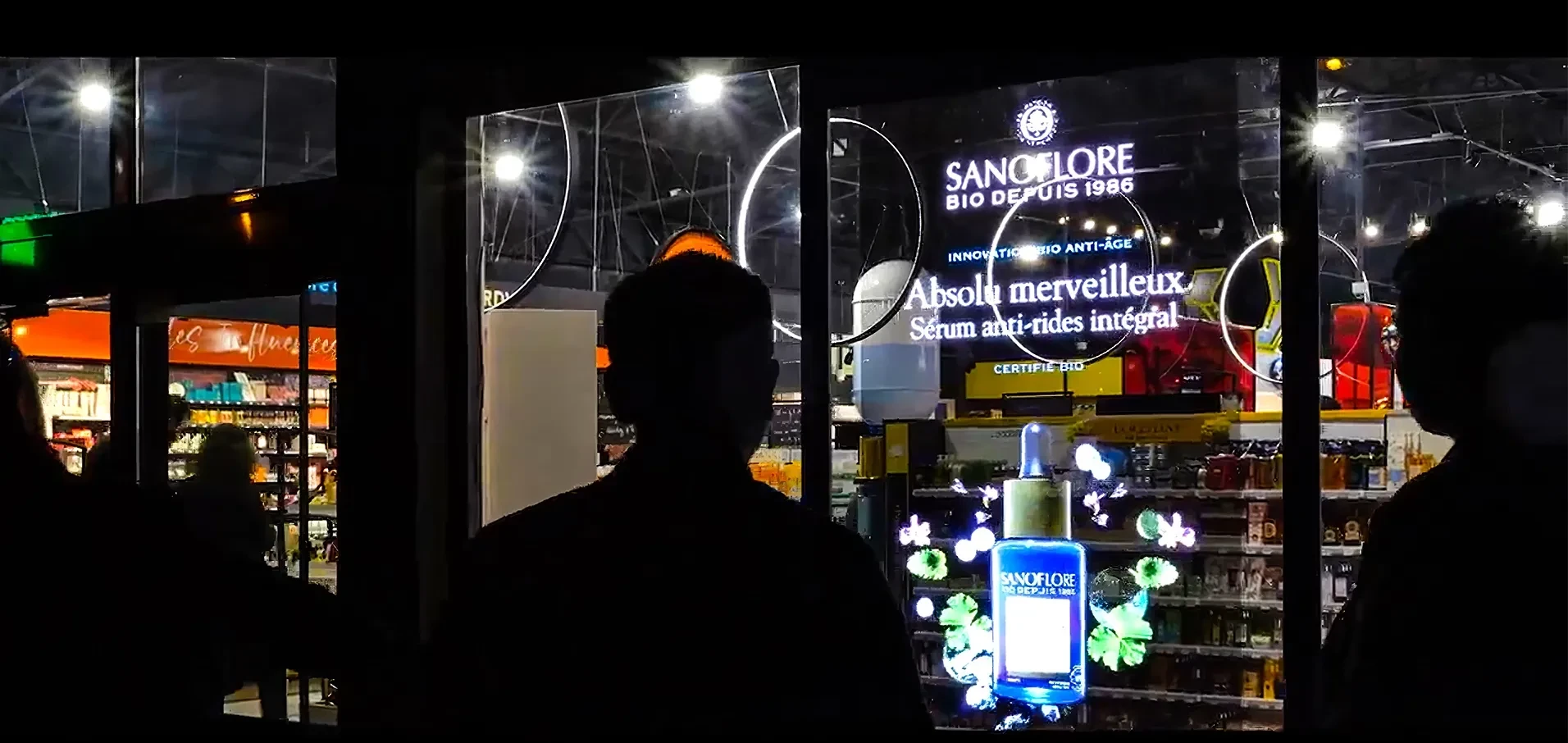

| Transparency Rate | 92% | 95% | ||||
| Display Dimension(mm) (w*h) | 250×1000 | 250×1172 | 250×1469 | 250×1000 | 250×1175 | 250×1475 |
| Module Dimension (mm)(w*h) | 250×1025 | 250×1197 | 250×1500 | 250×1025 | 250×1200 | 250×1500 |
| Resolution (dot) (w*h) | 64×256 | 64×300 | 64×376 | 40×160 | 40×188 | 40×236 |

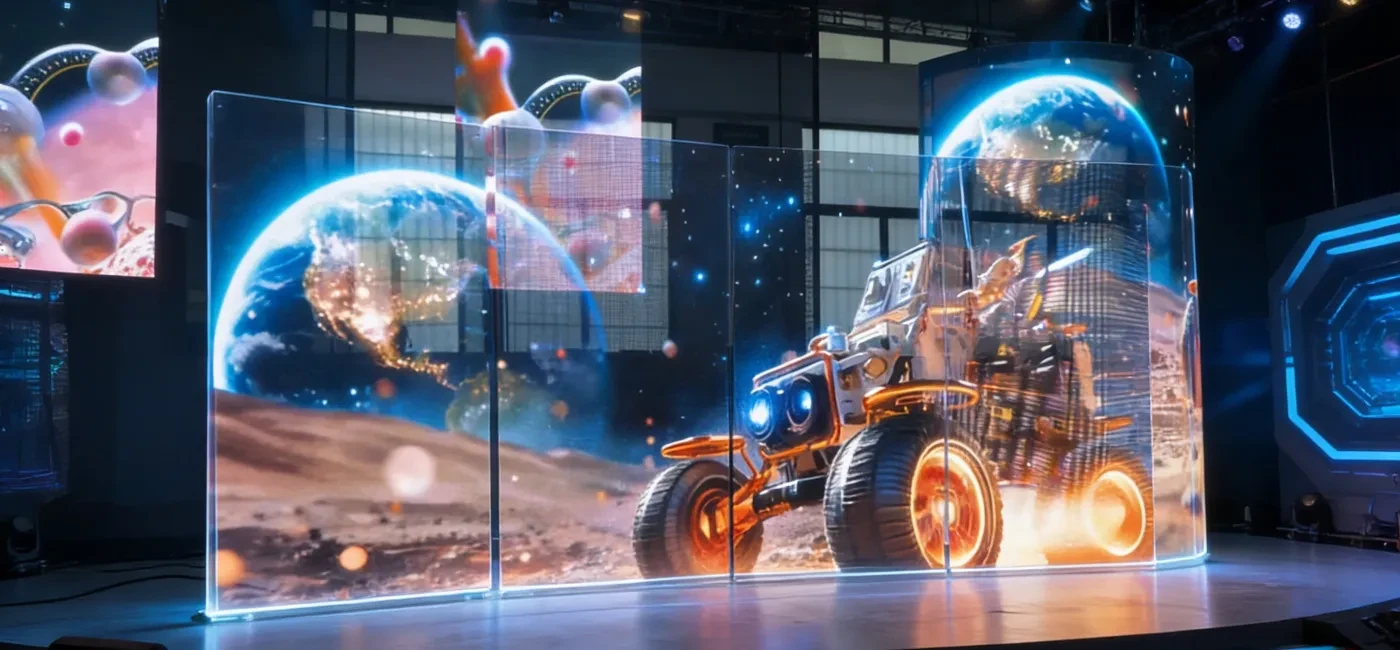

| Brightness(cd/m²) | ≥2500（Black Lamp） ≥4500（White Lamp） |
≥2000（Black Lamp） ≥3000（White Lamp） |
≥5000（White Lamp） | ≥4500（White Lamp） | ||
| Maximum Power Consumption (w/m²) | 865 | 865 | ||||
| Average Power Consumption (w/m²) | 350 | 350 | ||||
| Weight (kg/m2) | 6 | 6 | ||||
| Color Temperature(K) | 3000~10000 | 3000~10000 | ||||
| Scanning Mode | Static Driving (Single Pixel Single Control) | Static Driving (Single Pixel Single Control) | ||||
| Frame Rate（Hz） | 60~120 | 60~120 | ||||
| Pixel Configuration | 16bit | 16bit | ||||
| Input Voltage | AC100~240V 50/60Hz | AC100~240V 50/60Hz | ||||
| Working Voltage for Module | DC4.2V ±0.2V | DC4.2V ±0.2V | ||||
| Working Temperature | -20℃ ~ 50℃ | -20℃ ~ 50℃ | ||||
| Working Humidity | Humidity: 20% -85% (Without Condensation) | Humidity: 20% -85% (Without Condensation) | ||||
| Storage Temperature | -20℃ ~ 60℃ | -20℃ ~ 60℃ | ||||
| Storage Humidity | Humidity: 10% -85% (Without Condensation) | Humidity: 10% -85% (Without Condensation) | ||||
| Protection Degree | IP20 | IP20 | ||||
| Installation Method | LED Side Glued、PCB Side Glued、 Hanging Up | LED Side Glued、PCB Side Glued、 Hanging Up | ||||
| Installation Environment | Indoor | Indoor | ||||
