UsurfaceⅢ – Unilumin

UsurfaceⅢ ^Pro

Star Product Reloaded
Super Energy-Saving Innovation，5years brightness warranty
• 6.67/8.33/10mm

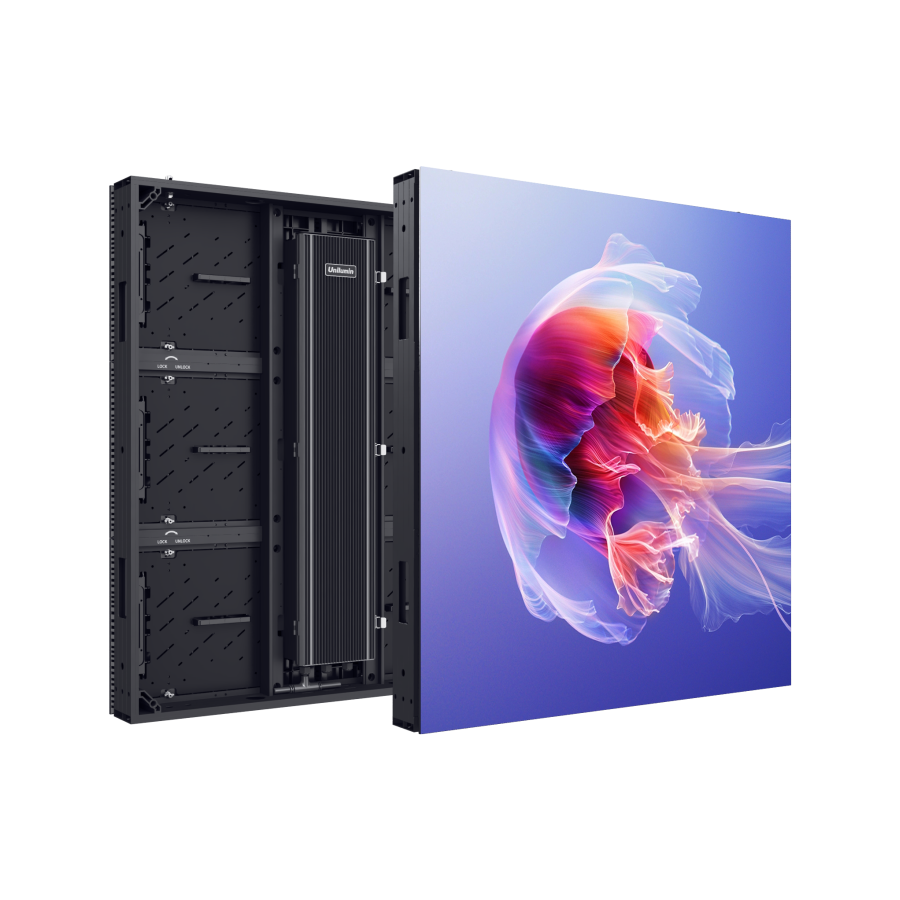

• 800*900mm Profile Aluminum
• 400*300mm Module

Application Scenario

Building facades

Gas station

Billboard

Sports

Star Product Reloaded

Super Energy-Saving Innovation，5years brightness warranty

Star Product Reloaded: Super Energy-Saving Innovation

Pro Maintenance ： Full-Screen Maintenance in < 5 Minutes

• 8 Knobs, 10s Quick-Release Module Design • Frame-Type Chassis for Effortless Maintenance • Independent Power Supply Box with Front&Rear Disassembly • High-Quality Aviation Connector Design for 1-Second Wiring

Pro vivid display ：Sparkle every moment for clients

• 10,000nits Outstanding visibility in the brightest outdoor environments • ≥14bit、≥7680Hz、16,000：1 Contrast More vivid and realistic, maximizing the inherent value of the advertising content • 160 ultra-wide viewing angle

Pro vivid display ：After five years, the screen can still maintain 6500 nits

Pro Energy-saving ：Reduces energy consumption by over 50%+

DVPS circuit design, with low supply voltage, saves 50%+* more compared to conventional displays.
* At the same brightness, it reduces energy consumption by over 50+% compared to traditional displays, resulting in lower electricity costs (for a 50㎡ area, saving 21,000 kWh over 3 years). This contributes to green energy efficiency.

Pro Energy-saving ：“Green” Design & “Low-Carbon Product"

Pro Protection ：Ultra-Strong Adaptability, Outdoor Reliability

A Large-Area Heat Dissipation Design for Operation in -40°C to 60°C
B Module with Standard Sunshade to Minimize Solar Radiation in Billboard Scenarios
C Aviation-Grade Connectors , Resisting Hurricanes & Heavy Rain in 90% Humidity
D ​IP69K Enclosure Design with Full-Stainless Components for Stable Operation in Salt Spray Environments

Pro Protection ：Ultra-Strong Adaptability, Outdoor Reliability

• IP69K is a vehicle grade test standard , which is more stringent than the regular IP rating test：higher temperature, higher pressure and multi-angle（0°, 30°, 60°, 90°）.
• Compared with IP65, IP69K is a higher dimension protection test, which is closer to the real application of outdoor display screens, so customers don’t need to worry about UsurfaceIII Pro ’s operation status even in the salt spray or high temperature environment.

Pro Maintenance ： Dual-side Potted Module Design

• The Dual-side Potted Module​ Improves thermal conductivity by ​26x​ and ensures uniform heat distribution compared to traditional PC shells.
Under enclosed conditions, the thermal conductivity of air is 0.023W/m·k, while the thermal conductivity of electronic encapsulation glue is greater than 0.6W/m·k. The thermal conductivity of encapsulation glue is more than 26 times higher than that of static air.

Creative Styling with Butter-Smooth Transitions
