UmateDA3 – Unilumin

UmateDA3

Watch The Video

UmateDA3

Slim & Quick Setup
Elevate Your Go-To Commercial Display

High Integrated Design: Board to board Connection
Large-size Module: 320*240 Module
Slim Cabinet: 38mm

Application Scenario

Retail

Entertainment

Airport

Corporate

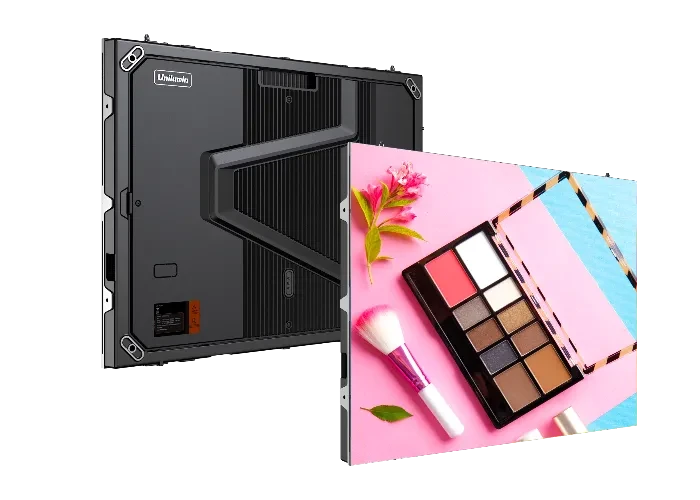

5 Core Upgrades

Structure Innovation Size Evolution Maintenance Upgrade Lightweight Design Connection Upgrade

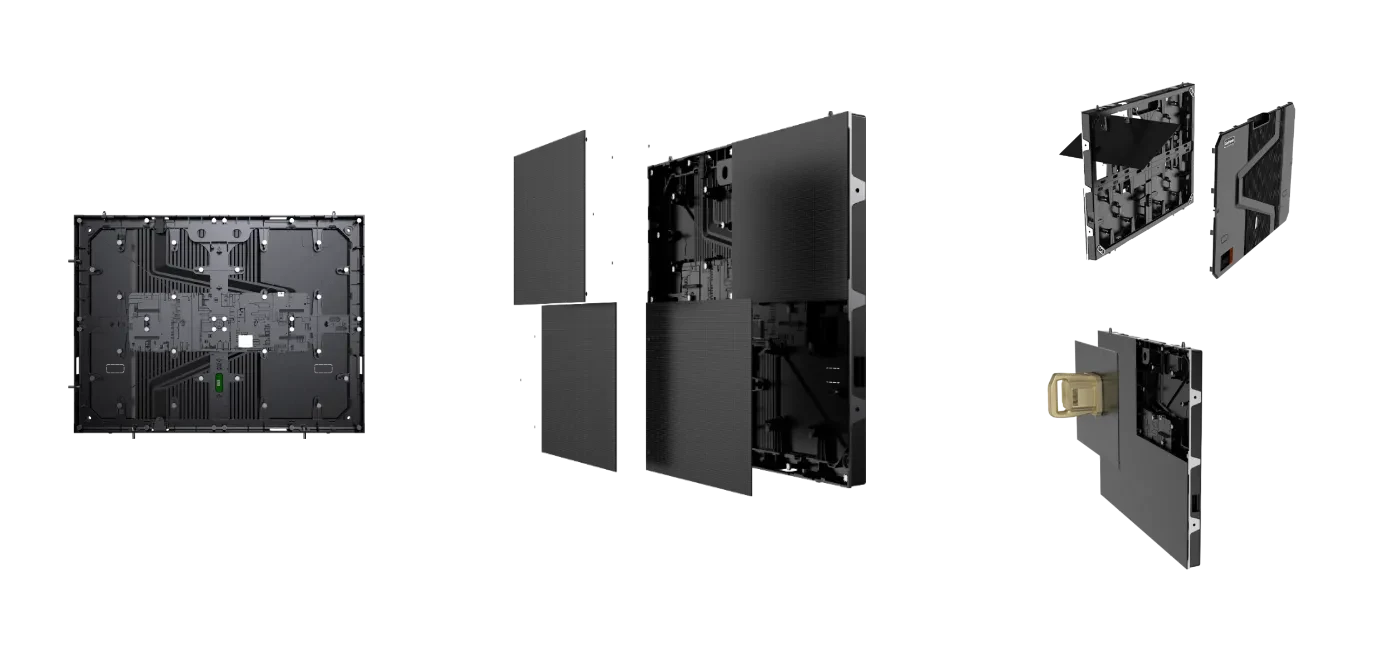

Upgrade for Better

Integrated Board: Maintenance Efficiency 3 times faster,Stability +50%
Large-size Module: Module Quantity 33% less，Splicing Gap 33% reduce
Ultra-thin and Light: Thickness 38% optimize, Transportation Cost 20% save
Front & Rear Maintenance: 3mm Hollowed design, Concealed handle
3 Core Locking Connector: Connection Stability improve, No Tools Required

Vivid Visual Experience

4200Hz High Refresh 5000:1 High Contrast 160° Wide Viewing Angle

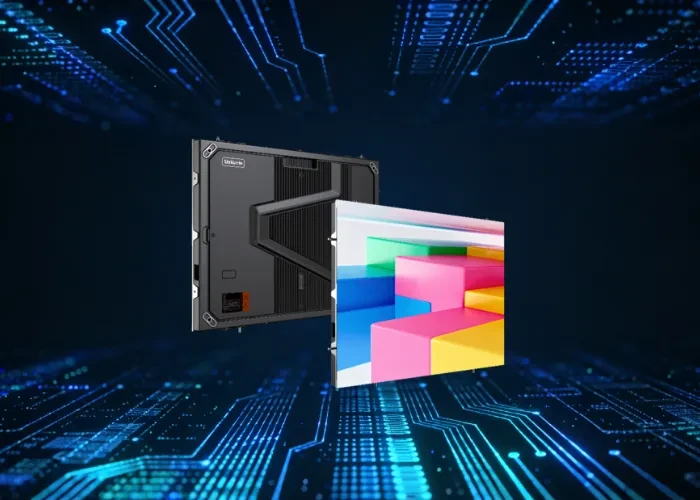

Low Radiation & EMC

Low Radiation Enjoy peace of mind with our low radiation technology, ensuring a safer viewing experience for everyone EMC Certified UmateDA3 meets strict EMC standards, guaranteeing minimal electromagnetic interference with other devices

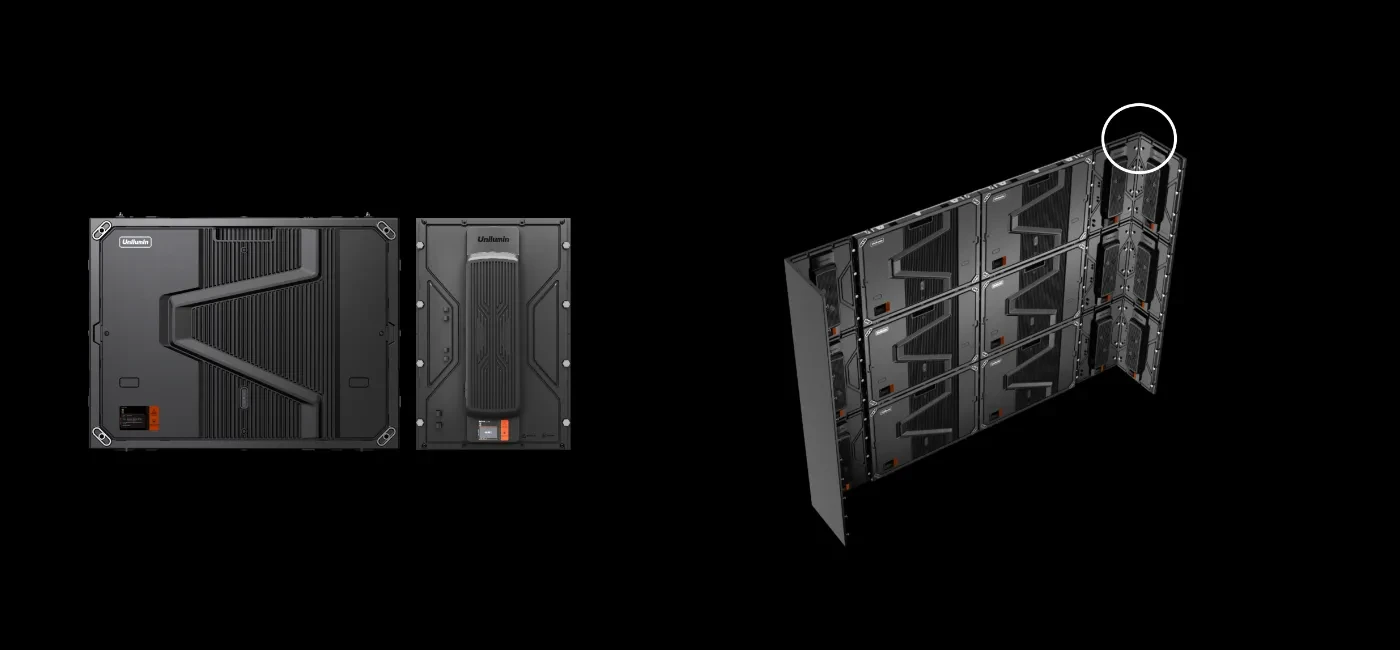

Customized Cabinet Available*

Product Parameter

Series	UmateDA3
Pixel pitch	1.8		2.5
Cabinet size	64048038mm
Module size	320*240mm
Weight	＜6kg/cabinet
Brightness	600nits
Refresh rate	≥4200Hz
Contrast	5000：1
Maintenance	Front & Rear
Power Consumption(Max)	380W/㎡	370W/㎡
Certification	CE、CB、ROHS2.0、FCC、IC、ETL
