Udesign SV Pro – Unilumin

Udesign SV Pro

AM+ full flip MIP technology

Ultra-high transmittance｜Max 5000 nits ｜sensory permeability ≥95%

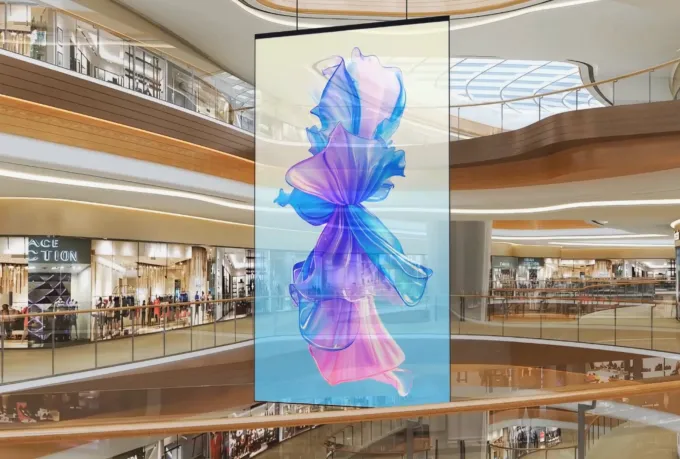

commercial complex

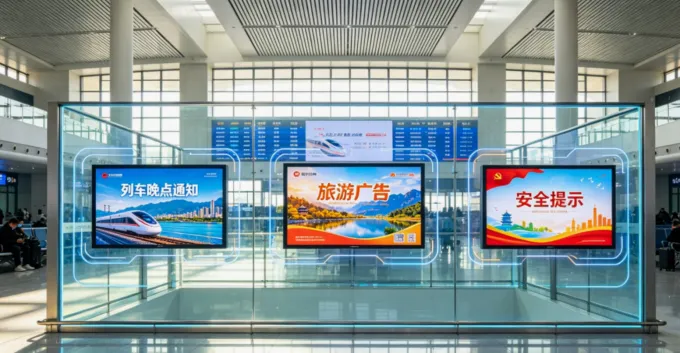

rail stations

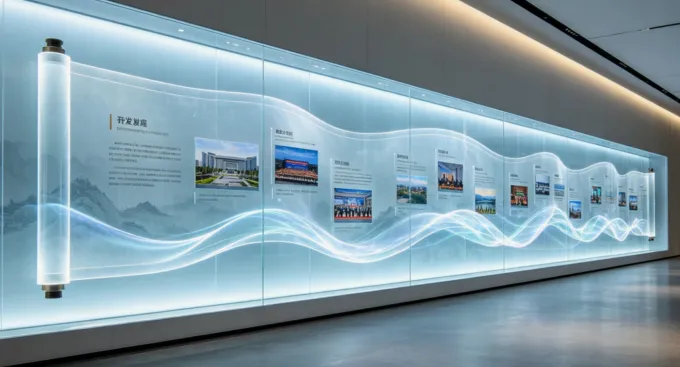

exhibition halls

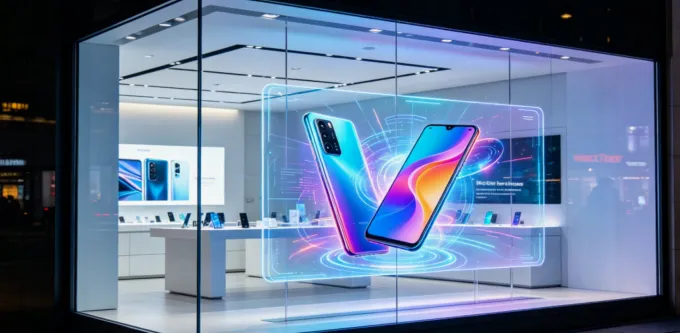

Retail

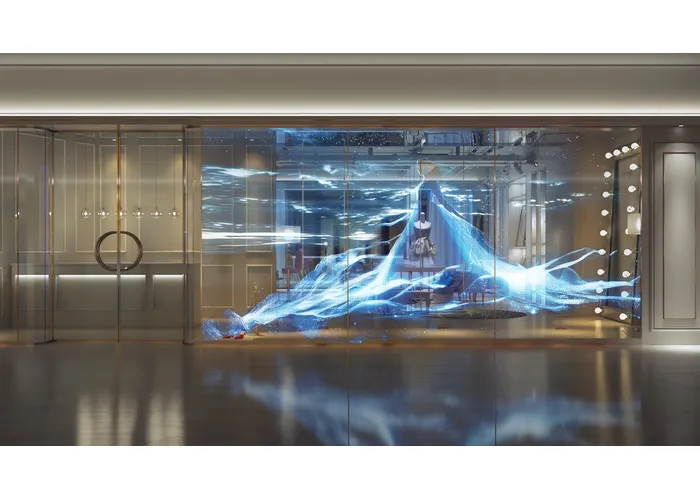

AM+MIP encapsulation

Fully flip-chip MIP, leadless, with 50% improved reliability and 30% reduced power consumption.

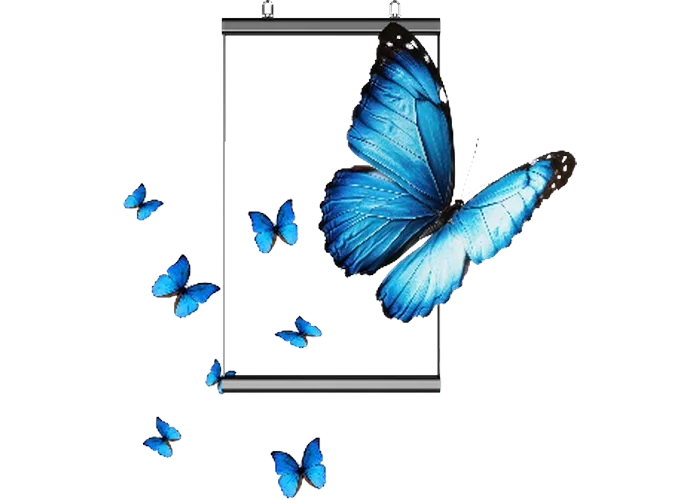

170° wide viewing angle

170° wide viewing angle, providing a comprehensive and seamless view, with high-definition display

Max 5000 Brightness, 30% Energy Saving

With a peak brightness of up to 5000 nits, the power consumption is only 560W per square meter.
Meet brightness requirements in multiple scenarios.

1.8mm Module thickness

"Ultimate thinness, ultimate thinness, as thin as 1.8mm, with a single module (250*1000mm) weighing as light as 0.6kg/pcs."
Professional aesthetic design, sleek and lightweight.

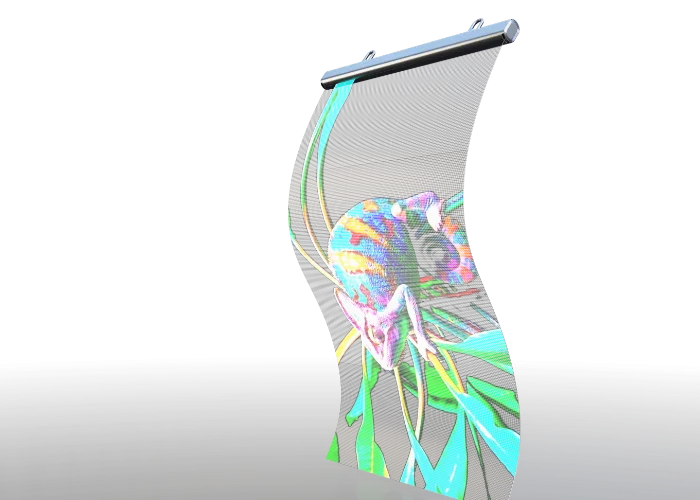

The screen thickness is 1.8mm, with perfect seamless curved surface installation.
Flexible modules perfectly fit various application environments.

sensory permeability≥92%

Ultra-high transmittance, enjoy the clear visual experience to the fullest
Comparing images and videos captured through a holographic screen with those captured directlyProfessional image analysis software, with image similarity up to 97%

Product Parameter

Udesign SV Pro
Model	Udesign SV3.9 Pro	Udesign SV6.25 Pro
Pixel pitch	3.9	6.25
Module Resolution	64307 / 64384 pixel	40192 / 64240 pixel
Module dimensions	2501200mm/2501500mm
Module thickness	1.8mm
Weight	6kg/㎡ (including lifting beam), 5kg/㎡ (including power box)
Brightness	5000nits/㎡	5000nits/㎡
Power <maximum value>	560W/㎡	560W/㎡
Power < Minimum Value>	187W/㎡	187W/㎡
Gray level	16bit
Refresh rate	10,000Hz
