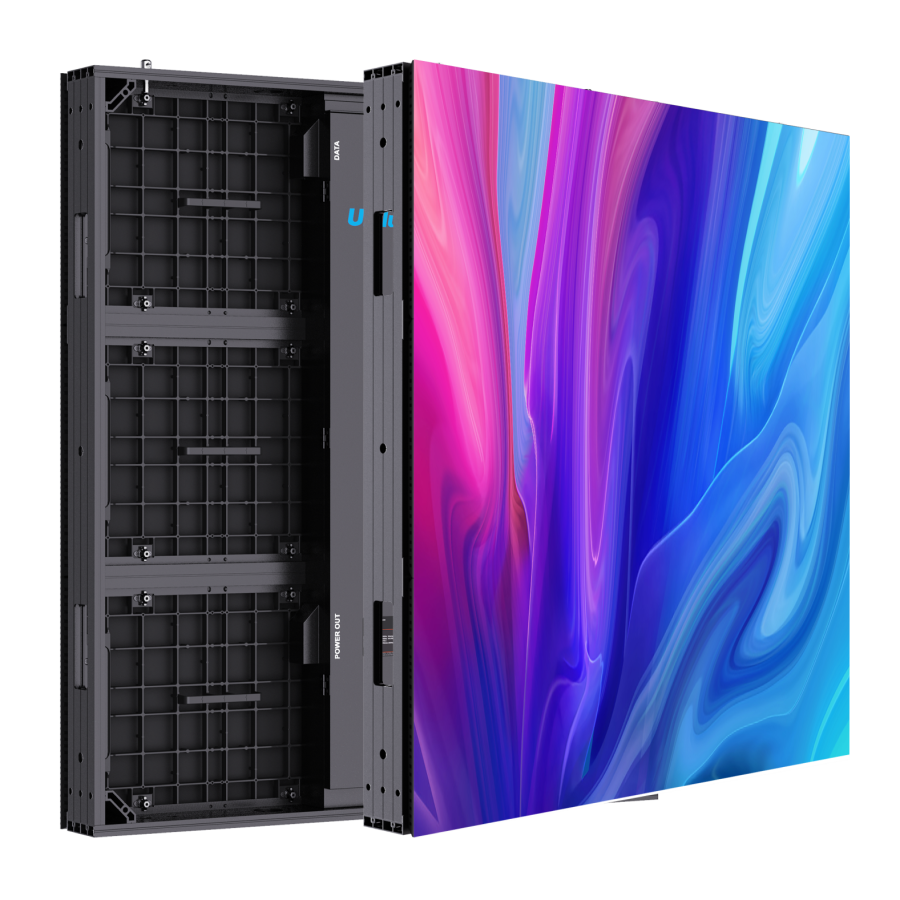

UsurfaceⅢ

PIONEERING SMD 10,000 NITS FOR OUTDOOR LED SCREEN

UsurfaceⅢ

Super brightness – SMD 10,000 nits

High contrast ratio – better viewing effect with less sunlight reflecting on the surface

Wider viewing angle – realize large-scale visibility

Front or rear maintenance

UsurfaceⅢ

Application scenario

  • Corporate

    Corporate

  • Billboard

    Billboard

  • Sports

    Sports

  • Gas Station

    Gas Station

Super Brightness by SMD 10000nits

Super Brightness by SMD 10000nits

Better Performance in Display

Better Performance in Display

UsurfaceIII presents a better performance in display. Thus, it will create more value for media advertising by attracting more audience and increase price for ads

High Reliability

High Reliability

Strong and stable even in extremely hot and humid weather conditions thanks to efficient heat dissipation brought by the hollowed-out design. And the fully waterproof module enables the screen to withstand rainy and stormy weathers.

Save cost

Save cost

With ultra slim and light weight design, UsurfaceIII is  easy to installation by individual

Front & Rear Maintenance

Front & Rear Maintenance

Front and rear maintenance, making it easier to operate in different applications

Product parameter

Parameter  Value
Model UsurfaceIII6 UsurfaceIII8 UsurfaceIII10 UsurfaceIII16
Pixel Pitch 6.7mm 8.3mm 10mm 16.7mm
Pixel Density 22,500 dots/m² 14,400 dots/m²  10,000 dots/m² 3,600 dots/m²
Panel Resolution 120 x 135 dots 96 x 108 dots 80 x 90 dots 48 x 54 dots
Panel Size (W × H × D) 800mm x 900mm x 96mm 800mm x 900mm x 96mm 800mm x 900mm x 96mm 800mm x 900mm x 96mm
Material Aluminum Aluminum Aluminum Aluminum
Brightness 6,500 - 10,000 cd/m²  6,500 - 10,000 cd/m²  6,500 - 10,000 cd/m²  6,500 - 10,000 cd/m²
Color Temperature 2,000 - 9,300 K Adjustable 2,000 - 9,300 K Adjustable 2,000 - 9,300 K Adjustable 2,000 - 9,300 K Adjustable
Viewing Angle (H/V) 140°/120°  140°/120°  140°/120°  140°/120°
Panel Weight (Front/Rear)  21kg/18.5kg 21kg/18.5kg 21kg/18.5kg 21kg/18.5kg
Contrast Ratio (5,500-9,000):1 (5,500-9,000):1 (8,000-16,000):1 (8,000-16,000):1
Service Access Front/Rear  Front/Rear  Front/Rear  Front/Rear
Input Power (Max.) 650 - 800 W/m² 650 - 800 W/m² 650 - 800 W/m² 650 - 800 W/m²
Input Power (Ave.) 217 - 267 W/m² 217 - 267 W/m² 217 - 267 W/m² 217 - 267 W/m²
Ingress Protection Front IP65, Rear IP54 Front IP65, Rear IP54 Front IP65, Rear IP54 Front IP65, Rear IP54
Input Voltage 100 - 240 VAC  100 - 240 VAC 100 - 240 VAC 100 - 240 VAC
Refresh Rate 3,840 Hz 3,840 Hz 3,840 Hz 3,840 Hz
Operating Temperature/Humidity -20°C to 50°C/10% - 90% RH -20°C to 50°C/10% - 90% RH -20°C to 50°C/10% - 90% RH -20°C to 50°C/10% - 90% RH
Storage Temperature/Humidity -30°C to 60°C/10% - 80% RH -30°C to 60°C/10% - 80% RH -30°C to 60°C/10% - 80% RH -30°C to 60°C/10% - 80% RH
Certification CE, FCC, UL, CB CE, FCC, UL, CB CE, FCC, UL, CB CE, FCC, UL, CB
