UpadⅣ

Create Value, Continuously

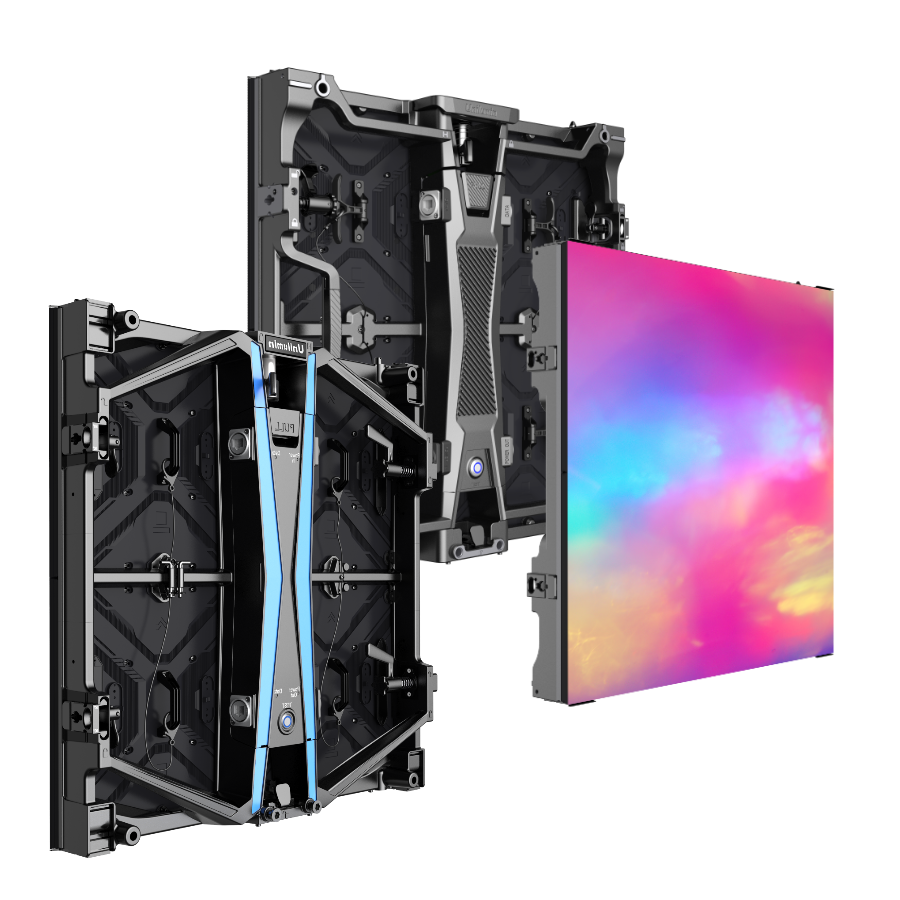

UpadⅣ

Ultra lightweight – die-cast magnesium design, weighs only 6.3kg

Automatic lock design – enables one engineer to finish installation, disassembly and maintenance

Brilliant visual performance – DDC (Dual Drive Configuration) Technology & HDR Technology

Multiple scenario applications – high precision curving & creative display

Mobile control solution, 4K in hand – smart phone could connect the sending card or the video processor directly without a computer

UpadⅣ

Application scenario

  • Exhibition

    Exhibition

  • Live Show

    Live Show

  • Broadcast

    Broadcast

  • Conference

    Conference

One-person Handling

One-person Handling

Automatic lock design enables one engineer to finish installation, disassembly and maintenance

Die-cast magnesium design

Die-cast magnesium design

The die-cast magnesium cabinet weights only 6.3kg, 30% lighter than average

Modular maintenance

Modular maintenance

Faster and easier on-site maintenance

Magnetic tool for module front service; free of tool for module rear service in 15s

Easy modularized maintenance for power box in 10s

Precise arc, fast lock

Precise arc, fast lock

9s to replace angle block, arcing faster

From -5 °(convex) to +10°(concave), wide range of curving,

creative screen shapes and sizes

Transportation protection

Transportation protection

High strength flight case

12mm thick birch wood layer, high-strength casters

Shockproof, anti-collision, the sturdiest protection

Handling cover

Handling cover

Foam sheath

Protect the corners of the cabinet to avoid damaging

LEDs in collision

Installation protection

Installation protection

Automatic edge protection & effective corner protection

Protect the LEDs near the edge of the cabinet, effectively reducing damage by 50% caused during installation

Ensure that the LEDs are free from contact with the ground when the cabinet is placed on the ground

Lower loss, more reliable

Lower loss, more reliable

Module protection

Module protection

Moveable safety rope design Increase safety during maintenance Provide better handling experience

DDC Technology (Dual Drive Configuration)

DDC Technology (Dual Drive Configuration)

Two modes by one switch One screen for dual uses

HDR Technology

HDR Technology

High resolution, 16bit high gray level, Support 10bit video

Automatic calibration

Automatic calibration

Calibration data will be updated automatically when the module is replaced

High precision curving

High precision curving

5°(convex)  10° (concave)

Mounting methods

Mounting methods

Creative display

Creative display

Mobile control solution

Mobile control solution

For small-sized exhibitions

A smart phone connects the sending card or the video processor directly without needing a computer.

Manage, edit, and send the program through an APP on the smart phone.

Display a picture of any size within the resolution of 3,840*2,160.

Product parameter

Parameter  Value
Model UpadIV
Pixel Pitch 2.6 mm
Environment Indoor
LED Type 3-in-1 Black SMD
Brightness 1,000 cd/m²
Pixel Density 147,456 pixels/m²
Module Size (W×H) 250 × 250 mm
Panel Size (W×H×D) 500 × 500 × 70.1 mm
Panel Resolution 192 × 192 dots
Panel Weight 6.3 kg
Material Die-cast Magnesium
Ingress Protection IP30
Operating Temperature/Humidity -10°C to 45°C/10% - 80% RH
Maintenance Rear
Curve (Convex - Concave) -5° to 15°
Viewing Angle (H/V) 140°/120°
Contrast Ratio 3,000:1
Input Power/Panel (Max.) 120 W
Input Power/Panel (Ave.) 40 W
Refresh Rate 3,840 Hz
Input Voltage 100 - 240 VAC
Input Power Frequency 50 - 60 Hz
Standard Mounting Configuration Hanging, Stacking
Certification TUV-CE/UL/CB/FCC/IC/RoHS
