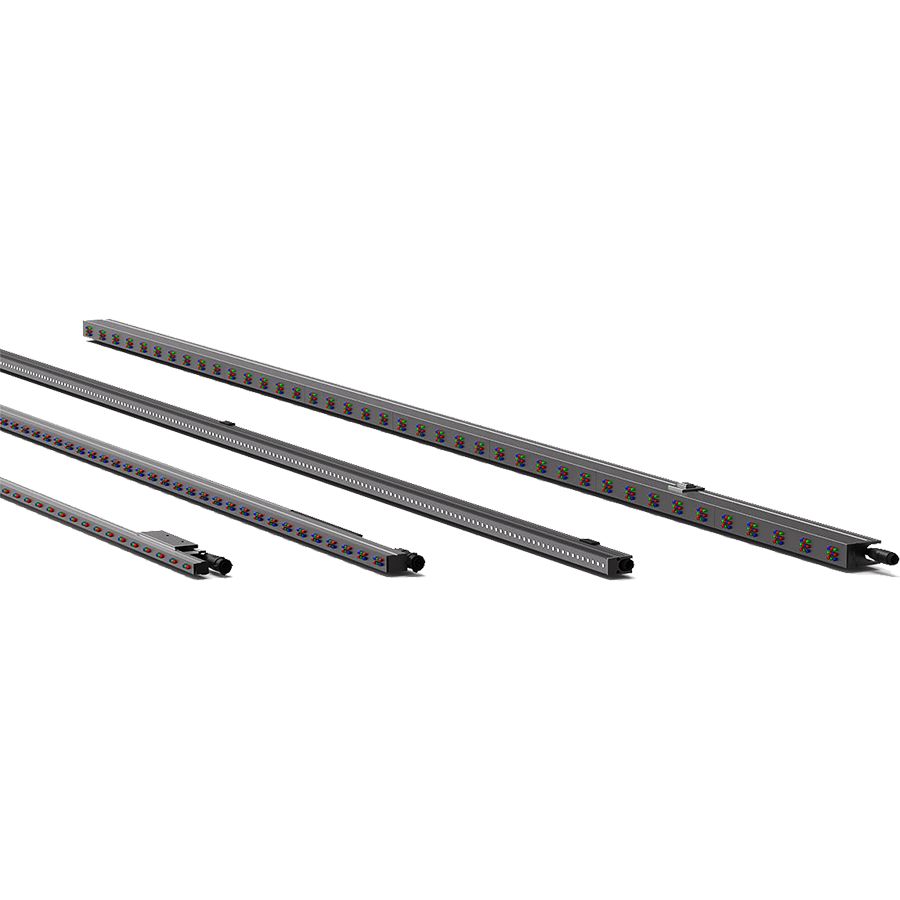

VT

VT

High frame rate of 60Hz – fully meet all kinds of video playback requirements, the picture is smooth and no stuck

High color rendition – adopt constant current drive and color temperature can be adjusted by software

Energy saving design – reduce light pollution and energy consumption without affecting the display gray scale

Circuit backup – circuit backup can be added to each channel signal and backup signal can be switched automatically when the signal is broken

VT

Application scenario

  • Outdoor Digital Signage

    Outdoor Digital Signage

  • Media Facade

    Media Facade

  • Architecture Media

    Architecture Media

  • Transparent Displays

    Transparent Displays

product details

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7

Product parameter

Parameter  Value
Model VT-2550C VT-1031E VT-1025E VT-1531A VT-1531B
Pixel Pitch 50mm 31.25mm 25mm 31.2mm 31.2mm
Input Data SDI Data SDI Data/DMX Data SDI Data/DMX Data SDI Data SDI Data
Material Aluminum Body & PC Mask Aluminum Body & PC Mask Aluminum Body & PC Mask Aluminum Body & PC Mask Aluminum Body & PC Mask
Led Lamp Oval DIP LED (4R3G3B) Oval DIP LED (4R3G3B) Oval DIP LED (4R3G3B) Oval DIP LED (4R3G3B) Oval DIP LED (4R3G3B)
Unit Size (L×W×D) 1000mm-4000mm ×
25mm × 42mm
500mm-3000mm ×
10mm × 18mm
500mm-3000mm ×
10mm × 18mm
500mm-3000mm ×
10mm × 18mm
500mm-3000mm ×
10mm × 18mm
Strip Permutation Horizontal | Vertical Horizontal | Vertical Horizontal | Vertical Horizontal | Vertical Horizontal | Vertical
Viewing Angle(H×V) 20(cd/dot) 6.5(cd/dot) 6.5(cd/dot) 6.5(cd/dot) 13(cd/dot)
Drive Mode 100˚ × 45˚ 100˚ × 45˚ 100˚ × 45˚ 100˚ × 45˚ 100˚ × 45˚
Input Voltage Constant Current, PWM Constant Current, PWM Constant Current, PWM Constant Current, PWM Constant Current, PWM
Maximum Connection 220 V 48 V 48 V 48 V 48 V
Power Consumption (Max.) 3840 dots 1024dot 1024dot 3840 dots 3840 dots
Weight 20 w/㎡ 8-10 w/㎡ 8-10 w/㎡ 8-10 w/㎡ 16-20 w/㎡
Protection 1.15 kg/m 0.4 kg/m 0.4 kg/m 0.65 kg/m 0.7 kg/m
Grey Scale RGB32768 (3×15bit) RGB 65536 (3×16bit) RGB 65536 (3×16bit) RGB32768 (3×15bit) RGB32768 (3×15bit)
Refresh Rate ≥3840 Hz ≥2000 Hz ≥2000 Hz ≥3840 Hz ≥3840 Hz
Frame Rate ≥60 Hz ≥60 Hz ≥60 Hz ≥60 Hz ≥60 Hz
Environmental -30℃ to +60℃
/ 10%-90%RH
-30℃ to +60℃
/ 10%-90%RH
-30℃ to +60℃
/ 10%-90%RH
-30℃ to +60℃
/ 10%-90%RH
-30℃ to +60℃
/ 10%-90%RH
