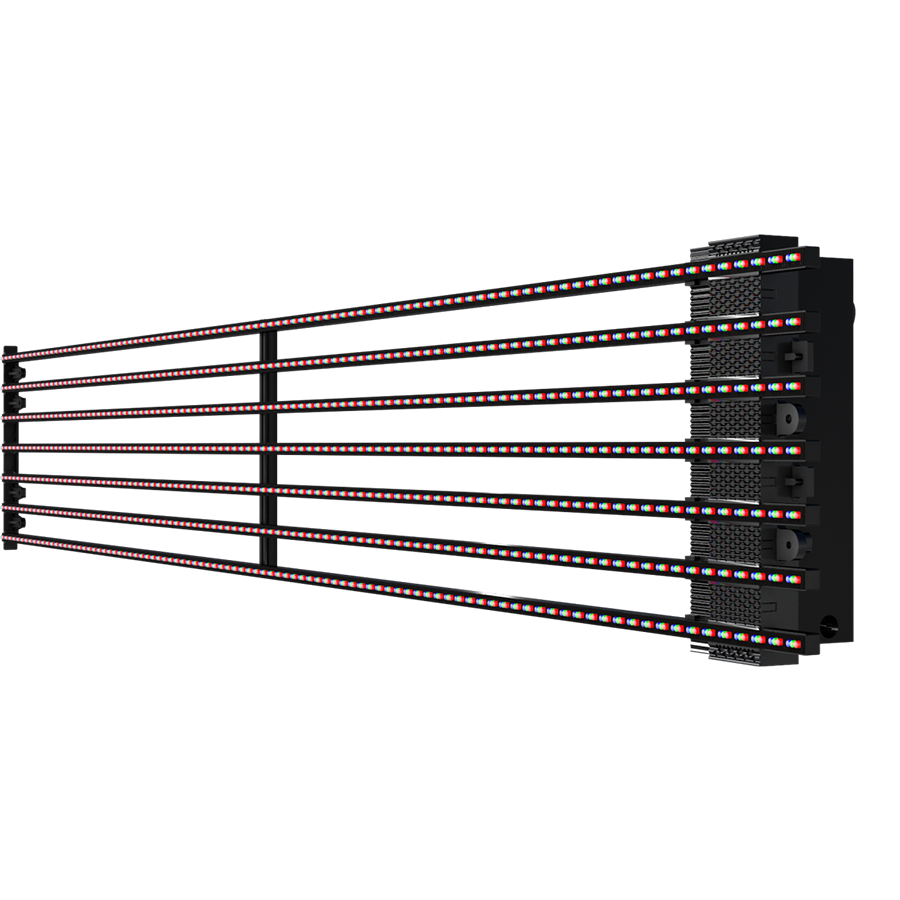

Integrated Module Design – built-in power and data processor for one-line connection and easy cable management

High brightness & low power consumption – while maintaining high brightness of 7500-10000nit, the average power consumption is only 100-140 w/㎡

Front ventilation – front ventilation system has air intake and exhaust

Convenient installation – free of steel frame structure, adapt to various types of buildings

O

Application scenario

  • Outdoor Digital Signage

    Outdoor Digital Signage

  • Media Facade

    Media Facade

  • Architecture Media

    Architecture Media

  • Transparent Displays

    Transparent Displays

product details

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6

Product parameter

Parameter  Value
Model O-1636E  O-2525E O-2536E  O-H2550E
Pixel Pitch 16mm/36.5mm 25mm/25.6mm 25 mm/36.5mm  25 mm/51.2 mm
Pixel Density 1,710 dots/m² 1,562 dots/m² 1,094 dots/m²  781 dots/m²
Brightness 7,500-12,000 cd/m²  7,500-12,000 cd/m²  7,500-10,000 cd/m² 12,000 cd/m²
Unit Size (Customizable) 256 x 1,536 mm 256 x 1,536 mm 256 x 1,536 mm 256 x 1,536 mm
Unit Resolution 7 x 96 dots 10 x 64 dots  7 x 64 dots  5 x 64 dots
Material Aluminum body, PC Mask Aluminum body, PC Mask Aluminum body, PC Mask Aluminum body, PC Mask
Transparency 73%  60% 73%  72%
Weight 11 kg/m²  13.5 kg/m²  10.5 kg/m² 10.5 kg/m²
Installation Front & Rear  Front & Rear  Front & Rear  Front & Rear
Power Consumption (Max.) 380-420 W/m²  400-440 W/m²  350-380 W/m² 350 W/m²
Power Consumption (Ave.) 154 W/m² 150 W/m² 130 W/m²  120 W/m²
Ingress Protection IP67 IP67 IP67 IP67
Input Voltage 100 - 240 VAC 100 - 240 VAC 100 - 240 VAC 100 - 240 VAC
Refresh Rate 1,920-3,840 Hz  1,920-3,840 Hz  1,920-3,840 Hz  3,840 Hz
Operating Temperature/Humidity -30°C to 60°C/10% - 90% RH -30°C to 60°C/10% - 90% RH -30°C to 60°C/10% - 90% RH -30°C to 60°C/10% - 90% RH
Control System JV-A, JV-N JV-A, JV-N JV-A, JV-N JV-A, JV-N
